Description

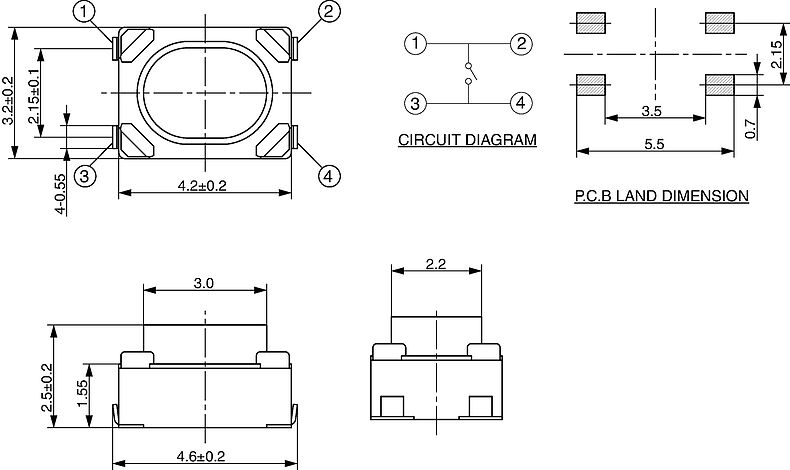

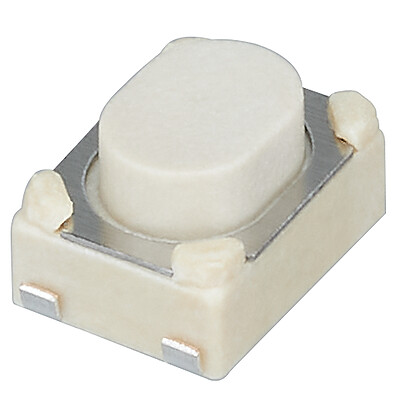

- Design 4.2x3.2 mm SMT mounting tactile
Unique Selling Proposition
- Microminiature size 4.2x3.2 mm
- Low profile 2.5mm height
- High number of cycles
- Reliable tactile feedback
Electrical Data
Switching Voltage
1 VDC - 12 VDC
Switching current
10 µA- 50 mA
Lifetime
100'000 actuations
Contact Resistance
max. 100 mΩ (initial)
max. 500 mΩ after lifetime
Duration of Bounce
≤ 5 ms
Mechanical Data
Actuating Force
180 ± 50 gf
250 ± 50 gf
400 ± 100 gf
Actuating Travel
0.2 ± 0.1 mm
End Stop Strength
30 N / 60 s
Climatical Data
Operating Temperature
-40 °C - 90 °C
Storage Temperature
-40 °C - 90 °C
IP-Protection
IP40
Soldering Data
Soldering Methods
Reflow
Material
Terminals
Gold-Plated Phosphor Bronze
Contact
Gold-Plated Stainless Steel
Cover
Stainless Steel
Socket
LCP UL 94V-0
Actuator
LCP UL 94V-0
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |

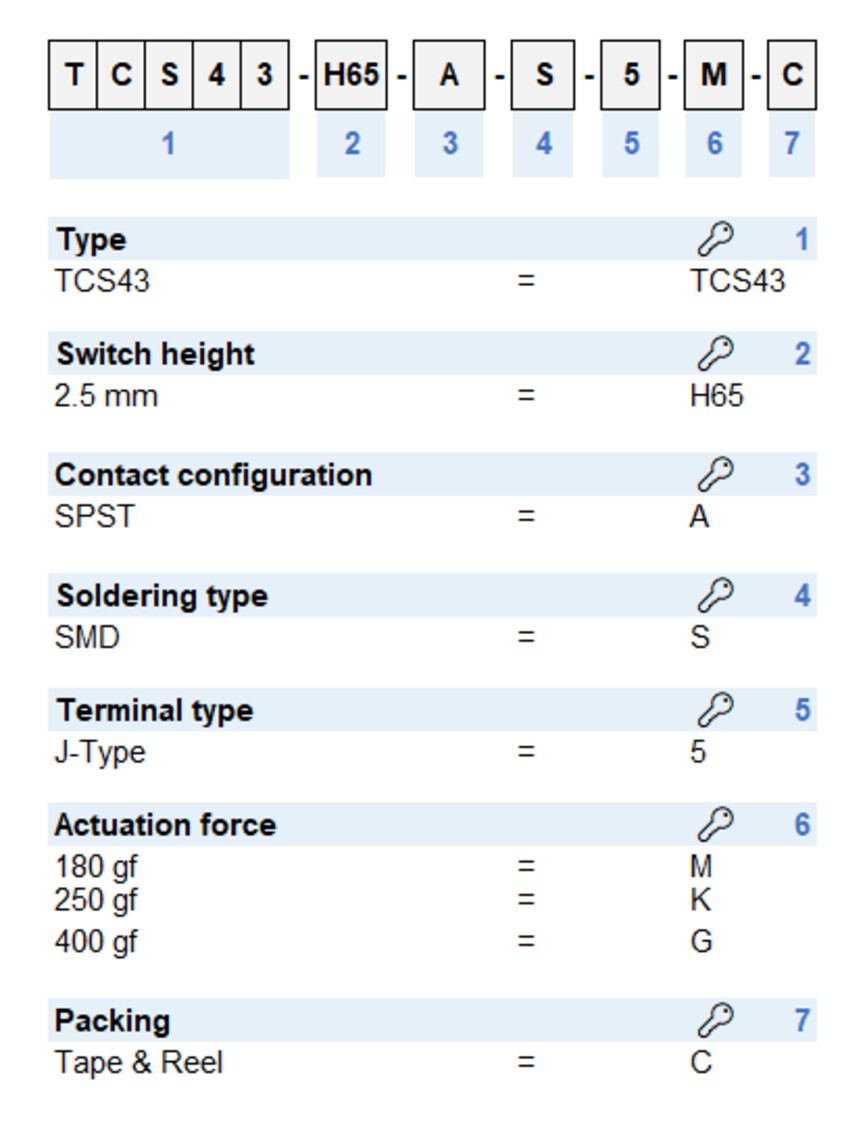

Short Table of Variants TCS43 Open complete table TCS43
| Type | Height | Terminal |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||
|---|---|---|---|---|---|---|---|---|
| TCS43 | 2.50 mm | J-Type | 3-161-117 | - | ... | |||
| TCS43 | 2.50 mm | J-Type | 3-161-118 | - | ... | |||
| TCS43 | 2.50 mm | J-Type | 3-161-119 | - | ... |

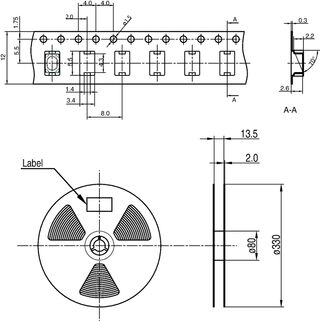

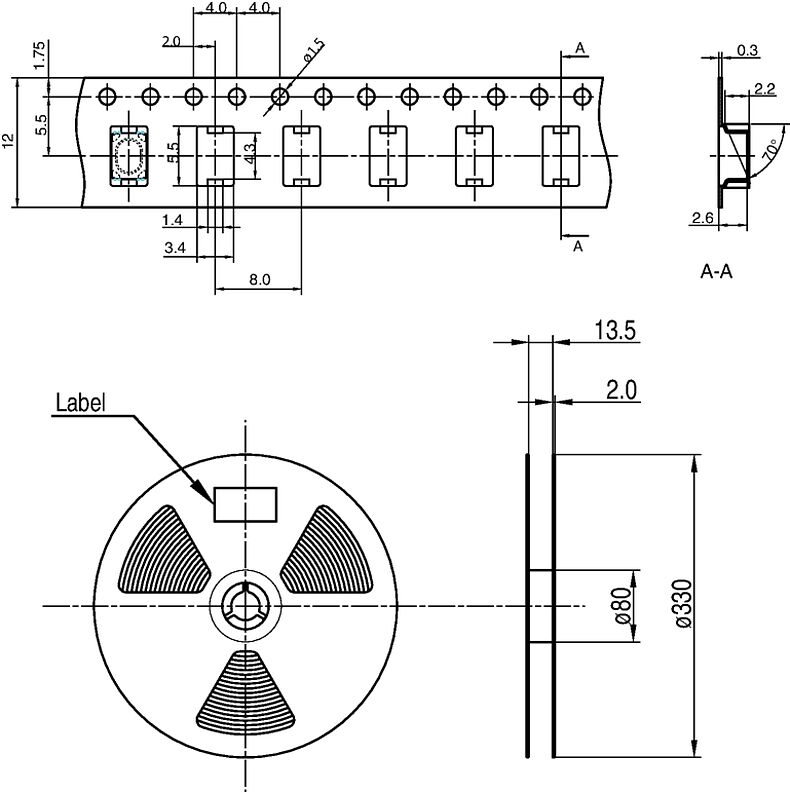

| Packaging unit | 3000 pcs. (Tape & Reel) |
