0909 Strip Block for Snap-in Mounting with up to 7 IEC Appliance Outlets F

Power Strip for snap-in mounting
5 appliance outlets F
Snap-in mounting from front side

Power Strip for snap-in mounting
3 appliance outlets F
Snap-in mounting from front side

Power Strip for snap-in mounting
Snap-in version
from front side

Series: 0909

Strip Block for Snap-in Mounting with up to 7 IEC Appliance Outlets F

6 Variants

Connectors (Inlets/Outlets)

70° C

Approvals and Compliances

CAD

Description

Panel mount
Snap-in version front side
Module of 2 up to 7 outlets
Pin temperature 70 °C, Protection class I
Solder terminals

Characteristics

Suitable for use in equipment according to IEC/UL 62368-1

Other versions on request

Other panel thickness

Detailed request for product

Details 0909

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

15 A / 250 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP30 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Solder terminals

Panel Thickness S

See details in drawing
Snapper

Snap-in 1.5 mm
tolerance +0.0/-0.1

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

F acc. to IEC 60320-3
UL 498 CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 0909

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	Certificate Number: 40052890
	UL Approvals	UL	UR File Number: E103791

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60320-3	Appliance couplers for household and similar general purposes
Designed according to	UL 498	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 42	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

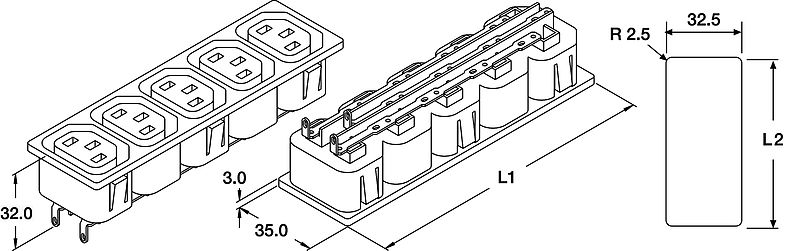

Dimensions [mm]

Short Table of Variants 0909 Open complete table 0909

Panel Thickness s [mm]	Connector	Length L1 [mm]	Order Number	...

1.5	2	51.2 mm	0909.0001	...
1.5	3	75.2 mm	0909.0011	...
1.5	4	99.2 mm	0909.0021	...
1.5	5	123.2 mm	0909.0031	...
1.5	6	147.2 mm	0909.0041	...
1.5	7	171.2 mm	0909.0051	...

Table of Variants 0909

Panel Thickness s [mm]	Connector	Length L1 [mm]	1) Position for optional terminal marking (terminal block width: 5.2 mm, lettering field: 4.6x5.1 mm,e.g. item 0818153 from Phoenix Contact)	Packaging unit	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

1.5	2	51.2 mm	48.3 mm	120	0909.0001	120
1.5	3	75.2 mm	72.3 mm	80	0909.0011	80
1.5	4	99.2 mm	96.3 mm	60	0909.0021	60
1.5	5	123.2 mm	120.3 mm	40	0909.0031	40
1.5	6	147.2 mm	144.4 mm	40	0909.0041	40
1.5	7	171.2 mm	168.4 mm	32	0909.0051	32
