Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
12 Variants
Description
- Line filter in standard and medical version
- 1 stage
- standard attenuation
Characteristics
- Compact design
- High attenuation at maximum resp. asymmetric load independent from the line impedance
- Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 62368-1
Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)
Other versions on request
- Version with wire connection
Ratings IEC
6 - 20 A @ Ta 40 °C / 250 VAC; 50 Hz
Ratings UL/CSA
6 - 20 A @ Ta 40 °C / 125 VAC; 60 Hz
Leakage Current
standard < 0.5 mA (250 V / 60 Hz)
Dielectric Strength
1.7 kVDC between L-N
2.7 kVDC between L/N-PE
Test voltage (2 sec)
Allowable Operation Temperature
-25 °C to 100 °C
Climatic Category
25/100/21 acc. to IEC 60068-1
Protection Class
Suitable for appliances with protection class I acc. to IEC 61140
Terminal
Quick connect terminals 6.3 x 0.8 mm
Material
Nickel plated steel

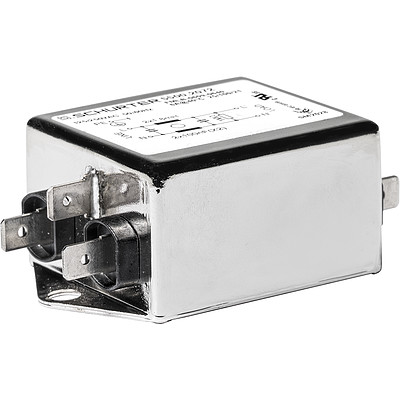

Line Filter
Standard and Medical Version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details
MTBF
> 200'000 h acc. to MIL-HB-217 F
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMLB
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | Certificate Number: 40004673 | |
|
UL | UR File Number: E72928 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | IEC 60939 | Passive filters for suppressing electromagnetic interference |
|
Designed according to | UL 1283 | Passive filters for suppressing electromagnetic interference |
|
Designed according to | CSA C22.2 no. 8 | Electromagnetic interference (EMI) filters |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
|
|
Suitable for applications acc. | IEC 60601-1 | Medical electrical equipment - Part 1: General requirements for basic safety and essential performance |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. | |
|
SCHURTER AG | Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP) |
LOADING...

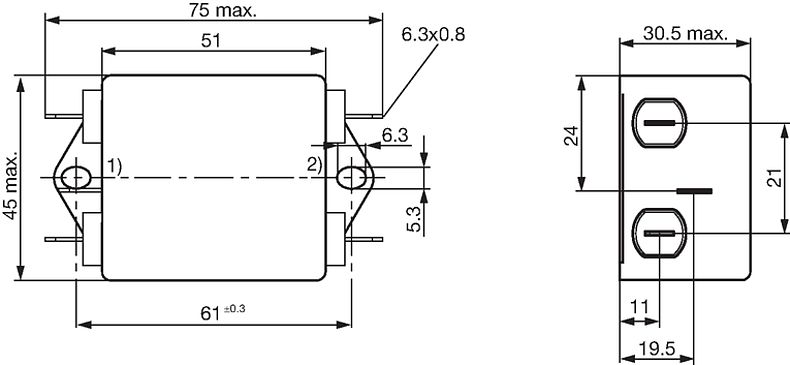

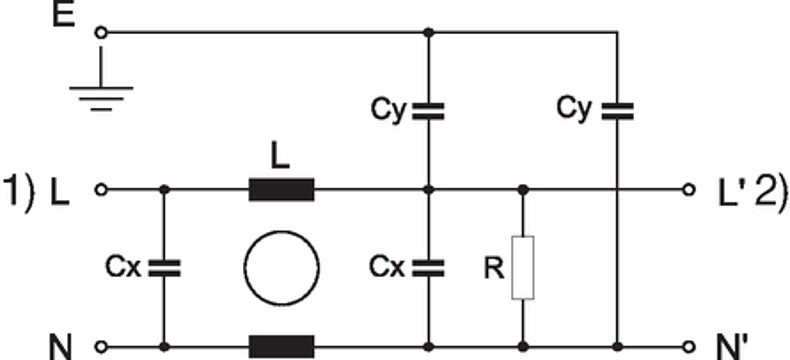

Diagrams

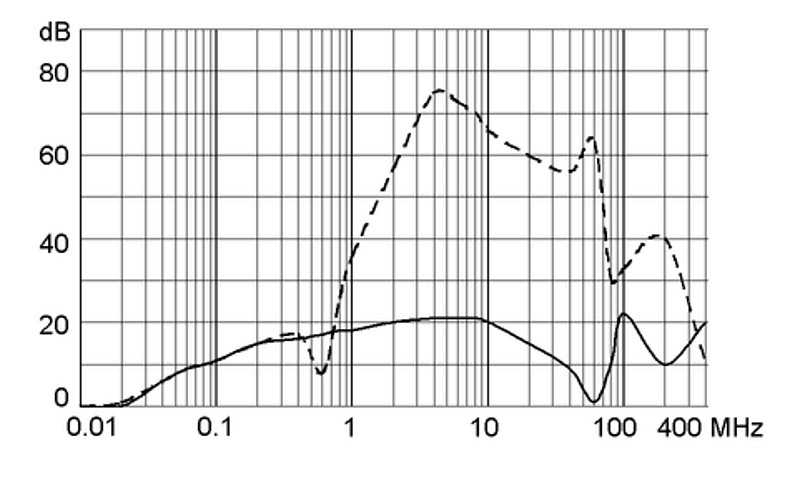

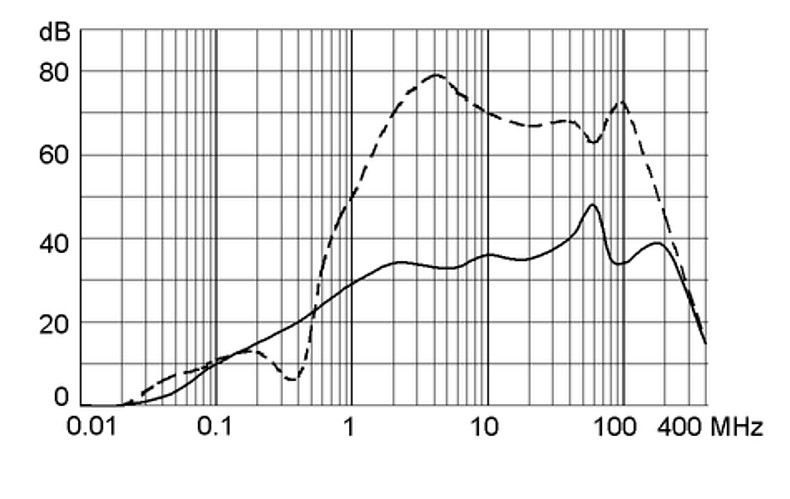

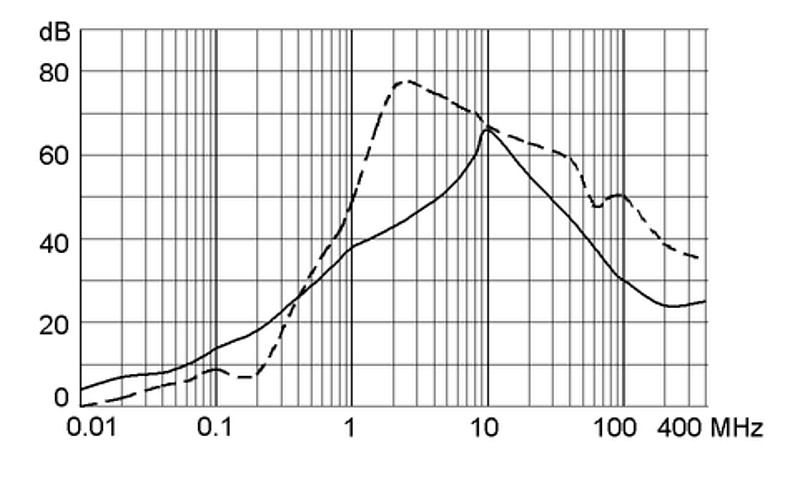

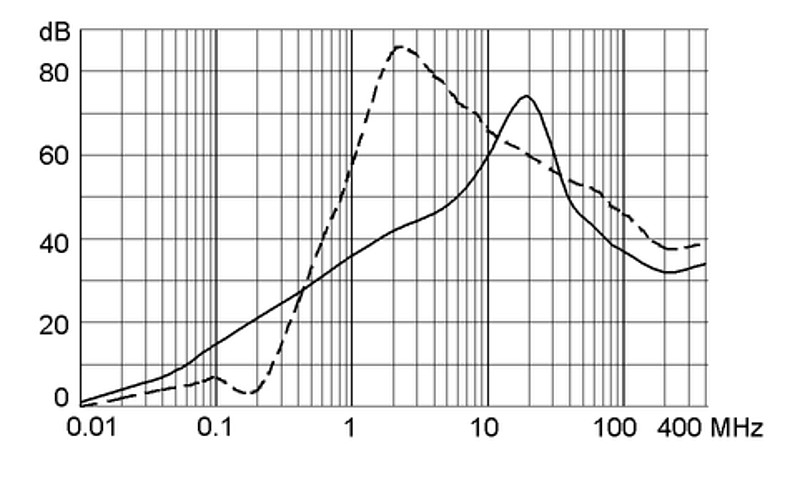

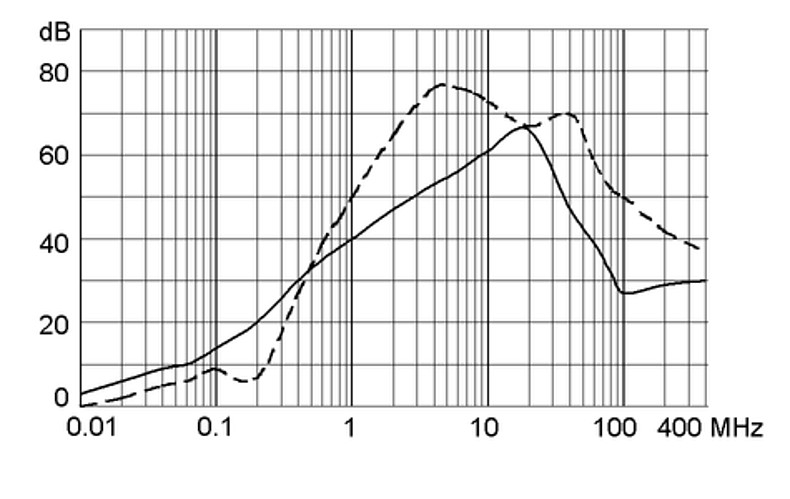

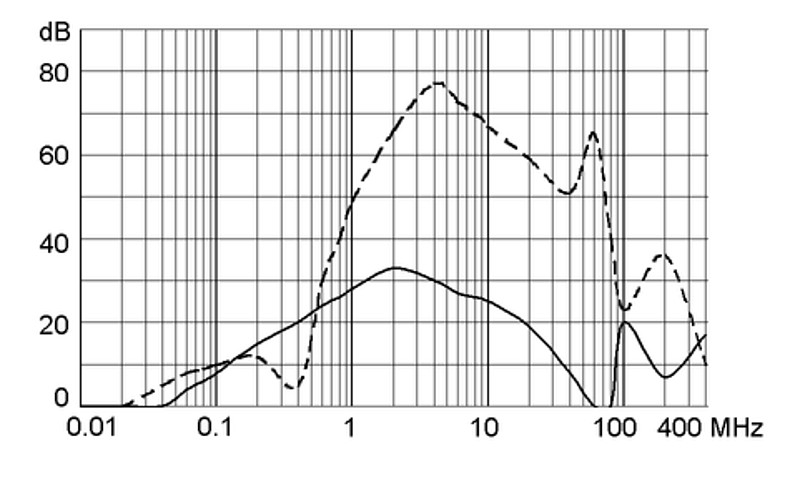

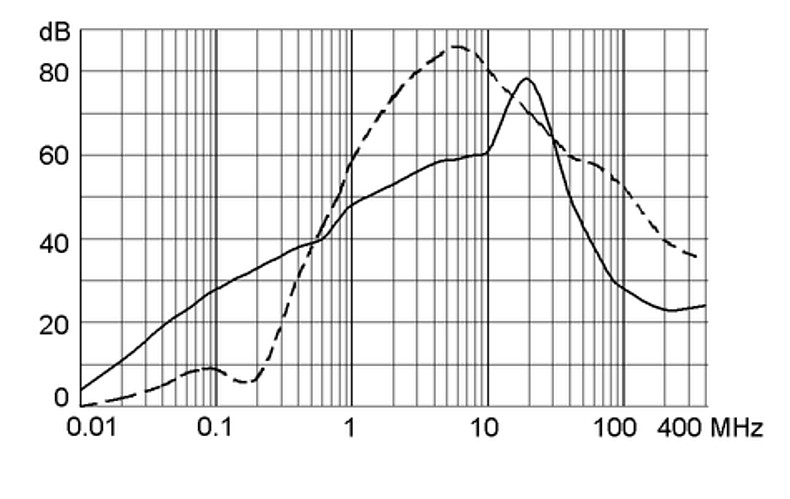

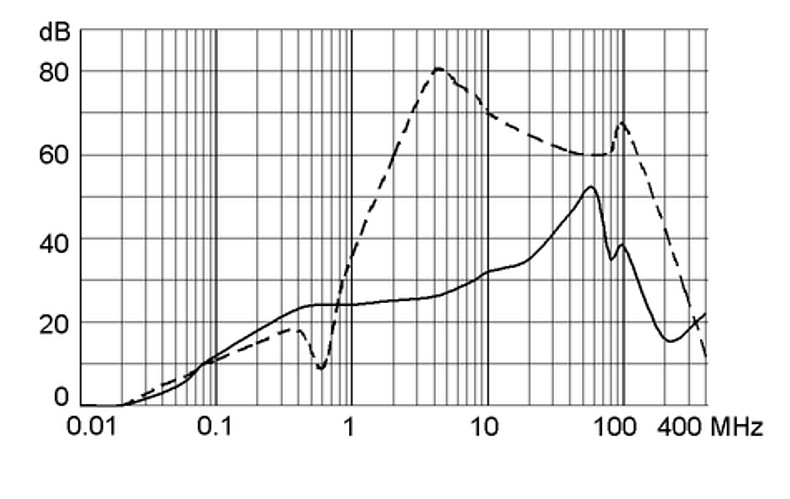

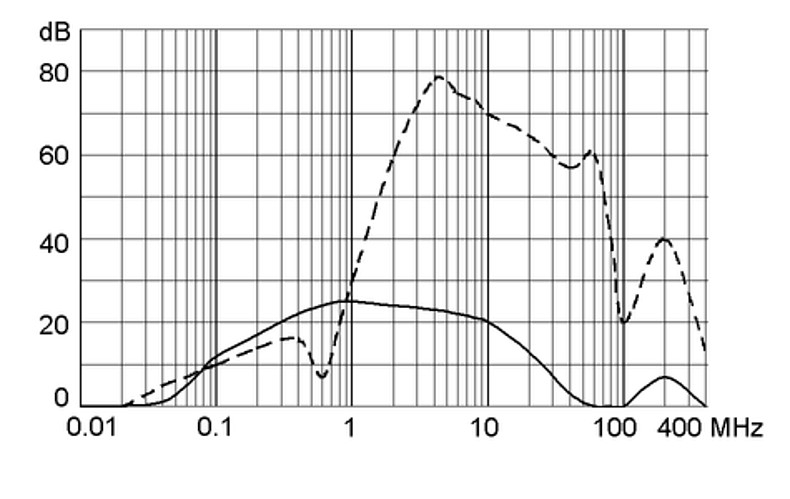

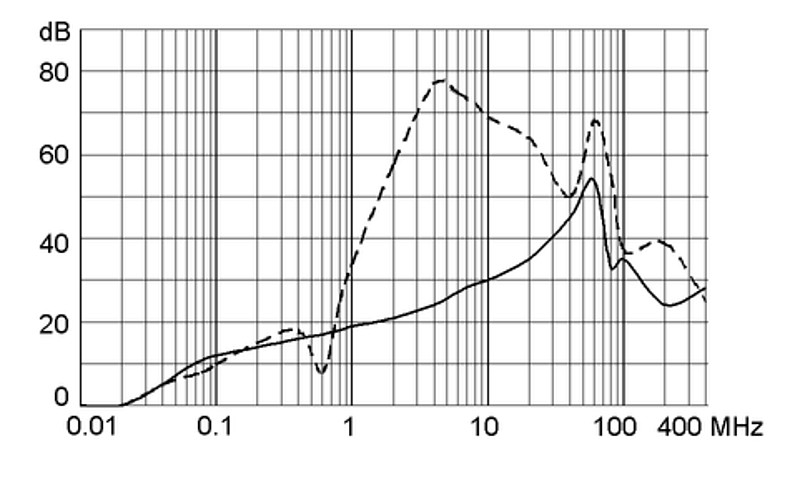

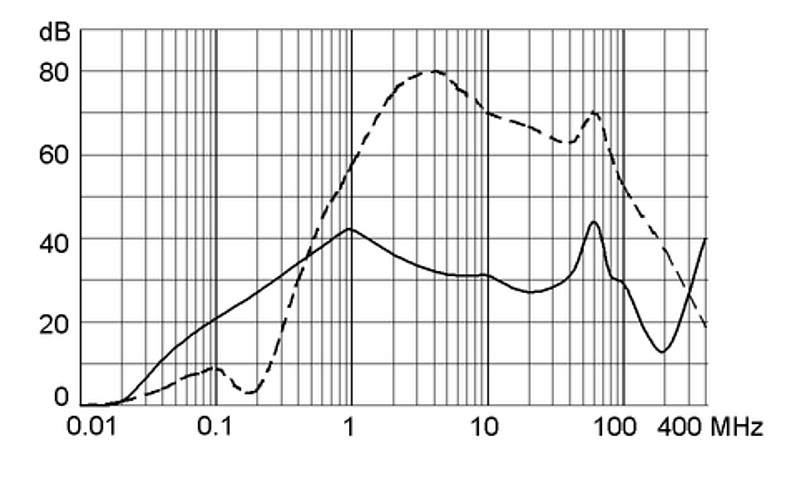

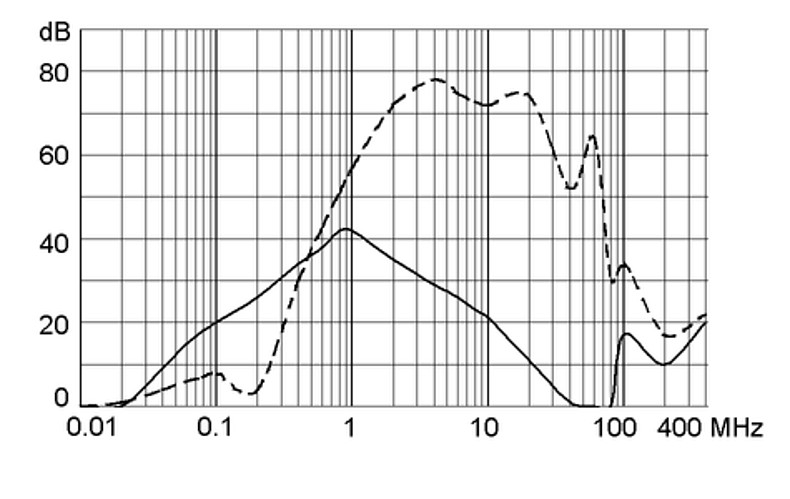

Attenuation Loss
Short Table of Variants FMLB-09 Open complete table FMLB-09
| Rated Current [A] | Filter-Type | L [mH] |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|
| 6 | Standard version | 2 x 1.8 | 5500.2031 | ... | |||
| 10 | Standard version | 2 x 0.82 | 5500.2032 | ... | |||
| 16 | Standard version | 2 x 0.64 | 5500.2033 | ... | |||
| 20 | Standard version | 2 x 0.5 | 5500.2034 | ... | |||
| 6 | Medical Version (M5) | 2 x 1.8 | 5500.2072 | ... | |||
| 10 | Medical Version (M5) | 2 x 0.82 | 5500.2073 | ... | |||
| 16 | Medical Version (M5) | 2 x 0.64 | 5500.2074 | ... | |||
| 20 | Medical Version (M5) | 2 x 0.5 | 5500.2076 | ... | |||
| 6 | Medical Version (M80) | 2 x 1.8 | 5500.2086 | ... | |||
| 10 | Medical Version (M80) | 2 x 0.82 | 5500.2087 | ... | |||
| 16 | Medical Version (M80) | 2 x 0.64 | 5500.2075 | ... | |||
| 20 | Medical Version (M80) | 2 x 0.5 | 5500.2088 | ... |
| Packaging unit | 10 Pcs |
We recommend for new applications the type (1)
