Series: FPG2

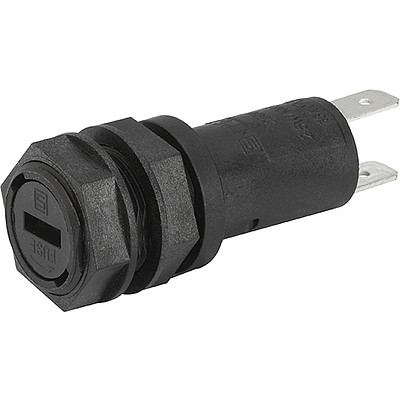

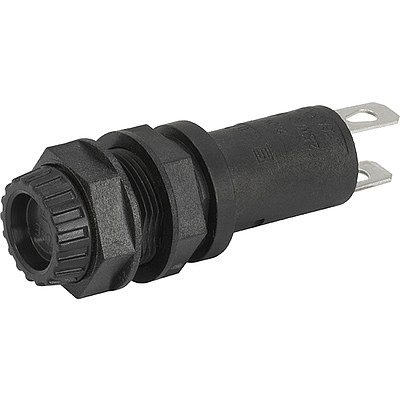

Shock-Safe Fuseholder, 5 x 20 mm, Slotted Cap/Fingergrip, Rear-Side, IP 40 / IP 67, IEC 60335-1

Free Sample Request

8 Variants


Description

  • Compact design
  • Mounting from rear-side
  • Degree of protection IP67 available

Applications

  • Household appliances
  • Medical Equipment

Shock-Safe Category

PC2

Fuse-Link

5 x 20 mm

Mounting

Panel mount, Rear Side

Attachment

Fixing Nut

Terminal

Solder / Quick-Connect 4.8 x 0.5 mm

Rated Voltage

250 VAC (VDE), 500 V (UL/CSA)

Rated current

10 A (VDE), 16 A (UL/CSA)

Rated Power Acceptance IEC

2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating curves

Degree of Protection

IP40 / IP67

Protection Class

Suitable for appliances with protection class I acc. to IEC 61140

Admissible Ambient Temp.

-40 °C to 85 °C

Climatic Category

40/085/21 acc. to IEC 60068-1

Material: Socket

Thermoplastic, black, UL 94V-0

Material: Terminals

Copper alloy, tin-plated

Unit Weight

6.01 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen, Type, Rated Voltage, Rated current, Power Rating, Certification marks

Soldering Methods

Iron
Soldering Profile

Solderability

350 °C / 3 sec acc. to IEC 60068-2-20, Test Ta, method 2

Resistance to Soldering Heat

350 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 2

Contact Resistance

≤ 10 mΩ at 100 mA acc. to IEC 60127-6

Dielectric Strength

> 3 kV between live parts

Impulse Withstand Voltage

> 4 kV between live parts

Insulation Resistance

≥ 10 MΩ between live parts
(500 VDC: 1 min)

Overvoltage Category

III acc. to IEC 60664-1

Pollution Degree

3 acc. to IEC 60664-1

Resistance to Vibration

acc. to IEC 60068-2-6, test Fc

Salt Mist

acc. to IEC 60068-2-11, test Ka

Admissible Torque on Fixing Nut

max 1.2 Nm

Panel Thickness

max 8 mm

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: FPG2

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 127216
Approval marks cURus UL UR File Number: E39328
Approval marks KTL KTL Korea Testing Laboratory


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60127-6 Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Approval marks UL Designed according to UL 4248-1 Industrial Control Equipment
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 4248.1 Industrial Control Equipment


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Environment_Safety Glow_Wire_Proof SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

010020020000000501
LOADING...

Dimension [mm]

IP40 / Variants 3101.0020 and 3101.0220
IP40 / Variants Fingergrip 3101.0025 and 3101.0225
1) Seal


IP67 / Variants 3101.0120 and 3101.0320
1) Seal


IP67 / Variants Fingergrip 3101.0125 and 3101.0325
Mounting holes

Derating Curves

acc. to IEC

Admissible power acceptance in Watt
Ambient air temperature Ta °C


Short Table of Variants FPG2 Open complete table FPG2

Holder Cap Terminal Order Number Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

slotted Solder 3101.0020 ...
slotted Quick-Connect 4.8 x 0.5 mm 3101.0220 ...
Fingergrip Solder 3101.0025 ...
Fingergrip Quick-Connect 4.8 x 0.5 mm 3101.0225 ...
slotted Solder 3101.0120 ...
slotted Quick-Connect 4.8 x 0.5 mm 3101.0320 ...
Fingergrip Solder 3101.0125 ...
Fingergrip Quick-Connect 4.8 x 0.5 mm 3101.0325 ...

Packaging Unit Bulk 186 x 91 x 110 mm (100 pcs.)
