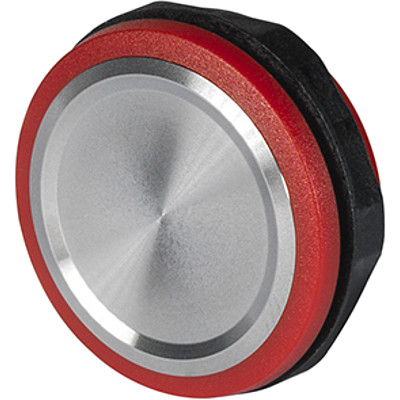

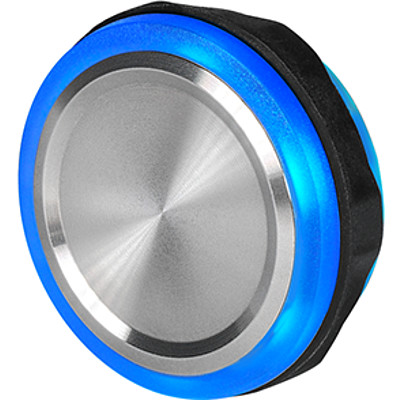

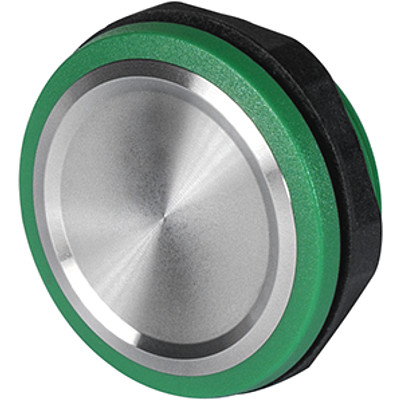

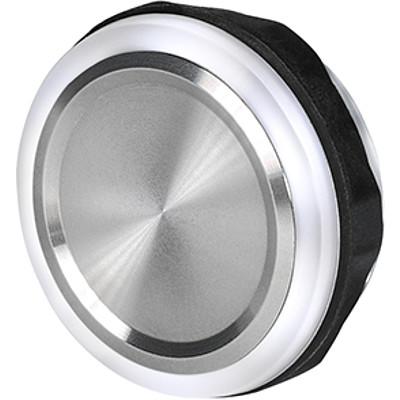

Variant Details
Electrical Data
Switching Function
momentary (MO) or latching (LA)
Switching Voltage
max. 60 VDC
Switching current
max. 100 mA
Electrical Rating
1 W
Switch Resistance OFF
> 10 MΩ
Switch Resistance ON
< 20 Ω
Supply Voltage
5 - 28 VDC
Reverse Polarity Protection
yes
Short Circuit Protection
yes
Lifetime
>20 million actuations
Mechanical Data
Actuating Force
1 - 3 N
Shock Protection
IK06
Mounting Depth
8 mm
Tightening Torque Plastic Nut
2.5 Nm
Climatical Data
Operating Temperature
-40 to 85 °C
Storage Temperature
-40 to 85 °C
IP Protection Class Front Side
IP67 acc. to IEC 60529
IP69K with sealing ring
Salt Spray Test (acc. to IEC 60068-2-11)
96 h Residence Time
Material
Housing
PMMA
Actuator
Stainless Steel
Illuminated ring
PMMA
Rear cover
PC
Mounting Nut
PBT GF30
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
The product complies with following Guide Lines
Identification | Details | Initiator | Description |
---|---|---|---|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | ||
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | ||
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | ||
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
Operating Data | Forward Voltage min. | Forward Voltage max. |
LED red | 1.7 V | 2.4 V |
LED green | 2.6 V | 3.2 V |
LED blue | 2.6 V | 3.2 V |
Max. Current | ||
Forward current (at +25°C) 1) | 50 mA | |
Forward current (at +85°C) 1) | 10 mA | |
Standby current | 1mA | |
1) Linear forward current derating curve | ||
Series resistor must be added. |
Laser Marking | |||
001 = A | 021 = U | 041 = ÷ | 061 = EIN |
002 = B | 022 = V | 042 = ✳ | 062 = AUS |
003 = C | 023 = W | 043 = = | 063 = AUF |
004 = D | 024 = X | 044 = # | 064 = AB |
005 = E | 025 = Y | 045 = ↔ | 065 = ON |
006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
007 = G | 027 = 0 | 047 = → | 067 = UP |
008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
012 = L | 032 = 5 | 052 = √ | 072 = START |
013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
014 = N | 034 = 7 | 054 = RETURN | 074 = |
015 = O | 035 = 8 | 055 = SHIFT | 075 = |
016 = P | 036 = 9 | 056 = LOCK | 076 = |
017 = Q | 037 = + | 057 = STOP | 077 = |
018 = R | 038 = - | 058 = ENTER | |
019 = S | 039 = . | 059 = BACK | |
020 = T | 040 = x | 060 = LINE | |
Please note that the font size depends on the number of characters
|
Diameter [mm] | Rated Current [A] | Illumination type |
Order Number
Variant Details
|
A=Most Popular | Free Sample | Distributor Stock Check | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19 | 100 mA | Without | 3-126-741 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Lateral illumination | 3-126-723 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-736 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-737 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-738 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-740 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-734 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-735 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-739 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-733 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Lateral illumination | 3-126-722 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-728 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-729 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-730 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-732 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-726 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-727 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19 | 100 mA | Without | 3-126-731 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-777 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Lateral illumination | 3-126-759 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-772 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-773 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-774 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-776 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-770 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-771 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-775 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-769 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Lateral illumination | 3-126-758 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-764 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-765 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-766 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-768 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-762 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-763 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 100 mA | Without | 3-126-767 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-812 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Lateral illumination | 3-126-794 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-807 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-808 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-809 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-811 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-805 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-806 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-810 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-804 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Lateral illumination | 3-126-793 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-799 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-800 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-801 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-803 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-797 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-798 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 100 mA | Without | 3-126-802 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging unit | 10 Pcs |
