PFRA PFRA - Fuse with wire connections en IM0005882

Series: PFRA

Radial Leaded Fuse, PTC, 60 VDC

Free Sample Request

40 Variants


Description

  • THT standard industry type
  • Directly solderable on printed circuit boards

Applications

  • Computer & Peripherals
  • General electronics
  • Automotive applications

V max

16.0 - 60.0 VDC

Imax

40 - 100 A

I hold

0.1 - 11 A

Attachment

PCB,THT

Allowable Operation Temperature

-40 °C to 85 °C

Material: Terminals

see variants

Weight

0.35 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

S_SCHURTER_Logo, Type, I hold

Soldering Methods

Wave
Soldering Profile

Solderability

235 °C / 2 sec

Resistance to Soldering Heat

260 °C / 10 sec

Passing Aging

+85 °C, 1000 Hours -> +/- 5% Typical Resistance Change

Humidity Aging

+85 °C, 85% r.h., 1000 Hours -> +/- 5% Typical Resistance Change

Thermal Shock

MIL-STD-202, Method 107 (+125 °C to -55 °C, 10 Cycles) -> +/- 15% Typical Resistance Change

Vibration

MIL-STD-883C, Method 2007.1, Test Condition A

Resistance to Solvents

MIL-STD-202, Method 215

Flammability

UL 94V-0

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: PFRA

Approval Logo Certificates Certification Body Description
Approval marks TÜV TUEV Technischer Überwachungsverein
Approval marks cURus UL UR File Number: E172175


Product standards

Product standards that are referenced

Organization Design Standard Description
Partners IEC_Certification_Body Designed according to 62319-1-1 Polymeric thermistors. Part 1-1: Current limiting application
Partners IEC_Certification_Body Designed according to IEC 62319-1-1 Miniature fuses. Part 2. Cartridge fuse links
Partners UL_Certification_Body Designed according to UL 1434 Thermistor-type devices
Partners CSA_Certification_Body Designed according to CSA 22.2 No. 0 TIL No. CA-3A General requirements - Canadian electrical code, part II


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Designed for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010010270000000130
LOADING...

Dimension [mm]

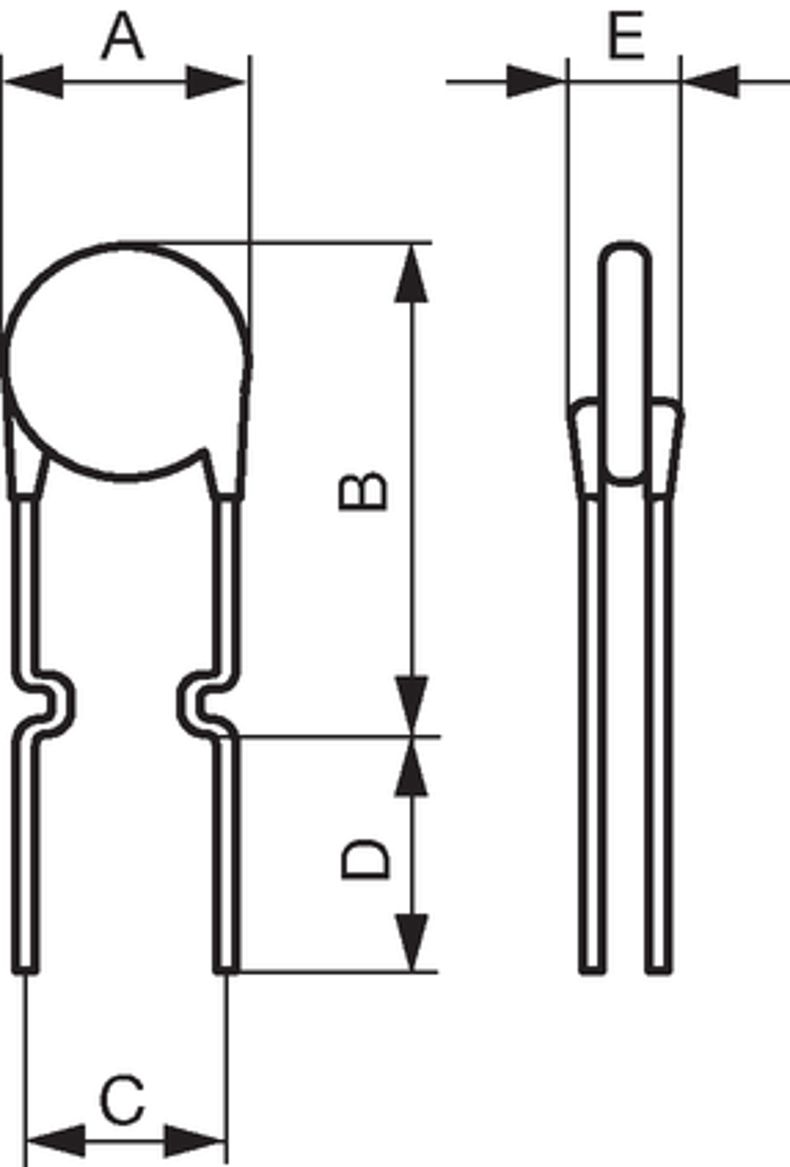

PFRA.010 - PFRA.185

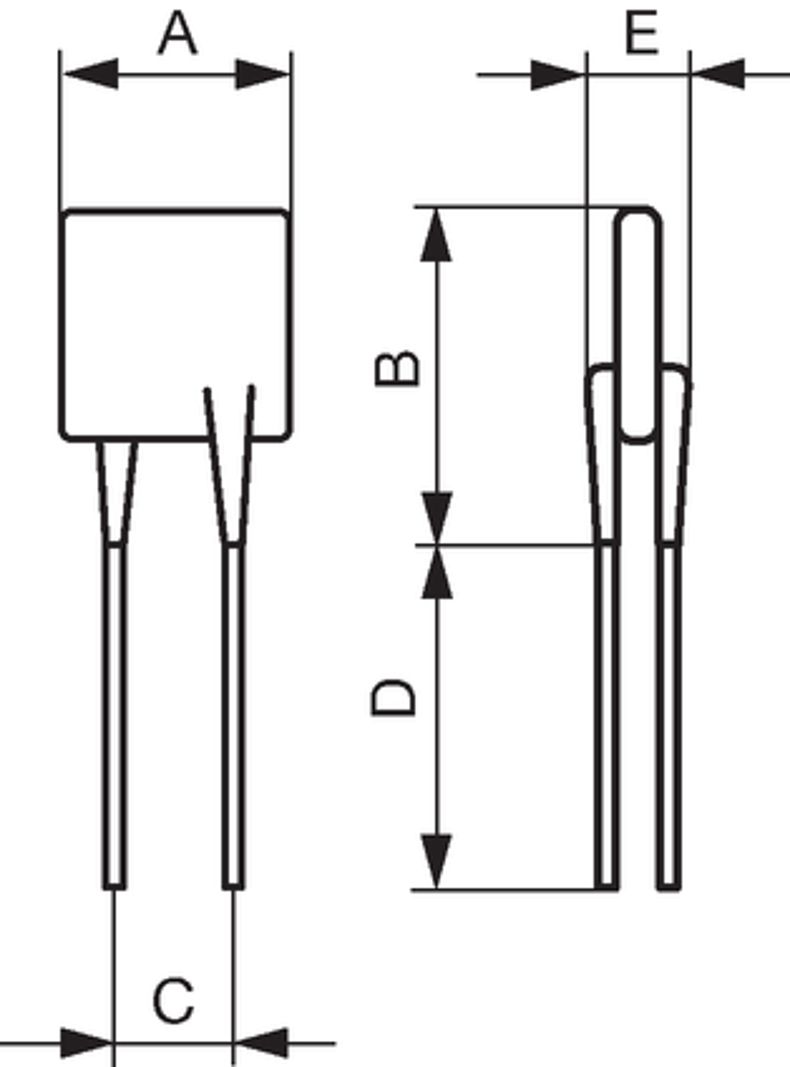

PFRA.250 - PFRA.1100

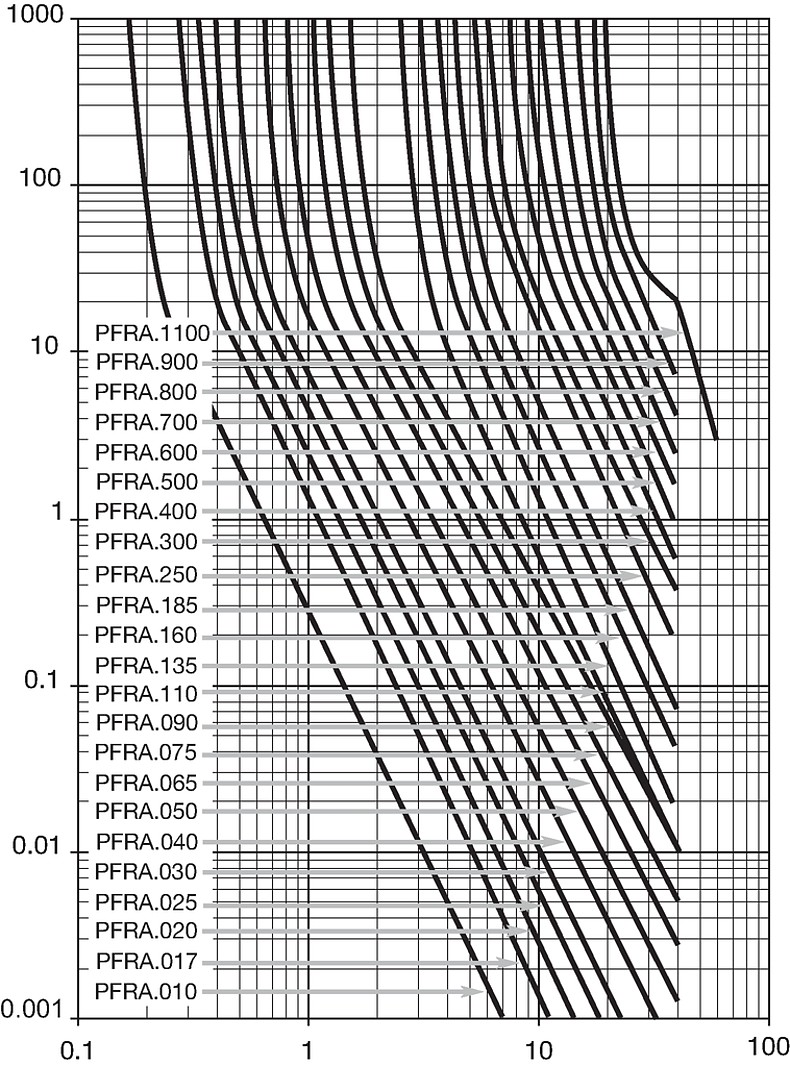

Time-Current-Curves

Time to Trip in Seconds
Fault Current in Amperes


Dimensions PFRA Open complete table PFRA

A max [mm] B max [mm] C min [mm] Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

7.4 12.7 4.4 PFRA.010  A  ...
7.4 12.7 4.4 PFRA.010.2 ...
7.4 12.7 4.4 PFRA.017  A  ...
7.4 12.7 4.4 PFRA.017.2 ...
7.4 12.7 4.4 PFRA.020  A  ...
7.4 12.7 4.4 PFRA.020.2 ...
7.4 12.7 4.4 PFRA.025  A  ...
7.4 12.7 4.4 PFRA.025.2 ...
7.4 13.4 4.4 PFRA.030  A  ...
7.4 13.4 4.4 PFRA.030.2 ...
7.4 13.7 4.4 PFRA.040  A  ...
7.4 13.7 4.4 PFRA.040.2 ...
7.9 13.7 4.4 PFRA.050  A  ...
7.9 13.7 4.4 PFRA.050.2 ...
9.7 15.2 4.4 PFRA.065  A  ...
9.7 15.2 4.4 PFRA.065.2 ...
10.4 16 4.4 PFRA.075  A  ...
10.4 16 4.4 PFRA.075.2 ...
11.7 16.7 4.4 PFRA.090  A  ...
11.7 16.7 4.4 PFRA.090.2 ...
8.9 14 4.4 PFRA.110  A  ...
8.9 14 4.4 PFRA.110.2 ...
8.9 18.9 4.4 PFRA.135 ...
8.9 18.9 4.4 PFRA.135.2 ...
10.2 16.8 4.4 PFRA.160  A  ...
10.2 16.8 4.4 PFRA.160.2 ...
12 18.4 4.4 PFRA.185  A  ...
12 18.4 4.4 PFRA.185.2 ...
12 18.3 4.4 PFRA.250  A  ...
12 18.3 4.4 PFRA.250.2 ...
12 18.3 4.4 PFRA.300  A  ...
12 18.3 4.4 PFRA.300.2 ...
14.4 24.8 4.4 PFRA.400  A  ...
14.4 24.8 4.4 PFRA.400.2 ...
17.4 24.9 9.5 PFRA.500  A  ...
19.3 31.9 9.5 PFRA.600 ...
22.1 29.8 9.5 PFRA.700 ...
24.2 32.9 9.5 PFRA.800  A  ...
24.2 32.9 9.5 PFRA.900 ...
24.2 32.9 9.5 PFRA.1100 ...

Most Popular.

Packaging Unit PFRA.xxxx  Bulk (500 pcs.)
PFRA.010.2 - PFRA.160.2  Taped 34 cm Reel (3000 pcs.)
PFRA.185.2 - PFRA.400.2  Taped 34 cm Reel (1500 pcs.)

Thermal Derating Chart Ihold [A] PFRA Open complete table PFRA

-40 °C -20 °C 0 °C Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

0.16 0.14 0.12 PFRA.010  A  ...
0.16 0.14 0.12 PFRA.010.2 ...
0.26 0.23 0.2 PFRA.017  A  ...
0.26 0.23 0.2 PFRA.017.2 ...
0.31 0.27 0.24 PFRA.020  A  ...
0.31 0.27 0.24 PFRA.020.2 ...
0.39 0.34 0.3 PFRA.025  A  ...
0.39 0.34 0.3 PFRA.025.2 ...
0.47 0.41 0.36 PFRA.030  A  ...
0.47 0.41 0.36 PFRA.030.2 ...
0.62 0.54 0.48 PFRA.040  A  ...
0.62 0.54 0.48 PFRA.040.2 ...
0.78 0.68 0.6 PFRA.050  A  ...
0.78 0.68 0.6 PFRA.050.2 ...
1.01 0.88 0.77 PFRA.065  A  ...
1.01 0.88 0.77 PFRA.065.2 ...
1.16 1.02 0.89 PFRA.075  A  ...
1.16 1.02 0.89 PFRA.075.2 ...
1.4 1.22 1.07 PFRA.090  A  ...
1.4 1.22 1.07 PFRA.090.2 ...
1.6 1.43 1.27 PFRA.110  A  ...
1.6 1.43 1.27 PFRA.110.2 ...
1.96 1.76 1.55 PFRA.135 ...
1.96 1.76 1.55 PFRA.135.2 ...
2.32 2.08 1.84 PFRA.160  A  ...
2.32 2.08 1.84 PFRA.160.2 ...
2.68 2.41 2.13 PFRA.185  A  ...
2.68 2.41 2.13 PFRA.185.2 ...
3.63 3.25 2.88 PFRA.250  A  ...
3.63 3.25 2.88 PFRA.250.2 ...
4.35 3.9 3.45 PFRA.300  A  ...
4.35 3.9 3.45 PFRA.300.2 ...
5.8 5.2 4.6 PFRA.400  A  ...
5.8 5.2 4.6 PFRA.400.2 ...
7.25 6.5 5.75 PFRA.500  A  ...
8.7 7.8 6.9 PFRA.600 ...
10.1 9.1 8.05 PFRA.700 ...
11.6 10.4 9.2 PFRA.800  A  ...
13 11.7 10.3 PFRA.900 ...
16.1 14.6 13.1 PFRA.1100 ...

Most Popular.

Packaging Unit PFRA.xxxx  Bulk (500 pcs.)
PFRA.010.2 - PFRA.160.2  Taped 34 cm Reel (3000 pcs.)
PFRA.185.2 - PFRA.400.2  Taped 34 cm Reel (1500 pcs.)

Electrical Characteristics at 23 °C PFRA Open complete table PFRA

V max [VDC] I max [A] I hold [A] Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

60.0 40 0.1 PFRA.010  A  ...
60.0 40 0.1 PFRA.010.2 ...
60.0 40 0.17 PFRA.017  A  ...
60.0 40 0.17 PFRA.017.2 ...
60.0 40 0.2 PFRA.020  A  ...
60.0 40 0.2 PFRA.020.2 ...
60.0 40 0.25 PFRA.025  A  ...
60.0 40 0.25 PFRA.025.2 ...
60.0 40 0.3 PFRA.030  A  ...
60.0 40 0.3 PFRA.030.2 ...
60.0 40 0.4 PFRA.040  A  ...
60.0 40 0.4 PFRA.040.2 ...
60.0 40 0.5 PFRA.050  A  ...
60.0 40 0.5 PFRA.050.2 ...
60.0 40 0.65 PFRA.065  A  ...
60.0 40 0.65 PFRA.065.2 ...
60.0 40 0.75 PFRA.075  A  ...
60.0 40 0.75 PFRA.075.2 ...
60.0 40 0.9 PFRA.090  A  ...
60.0 40 0.9 PFRA.090.2 ...
30.0 40 1.1 PFRA.110  A  ...
30.0 40 - PFRA.110.2 ...
30.0 40 1.35 PFRA.135 ...
30.0 40 1.35 PFRA.135.2 ...
30.0 40 1.6 PFRA.160  A  ...
30.0 40 1.6 PFRA.160.2 ...
30.0 40 1.85 PFRA.185  A  ...
30.0 40 1.85 PFRA.185.2 ...
30.0 40 2.5 PFRA.250  A  ...
30.0 40 2.5 PFRA.250.2 ...
30.0 40 3 PFRA.300  A  ...
30.0 40 3 PFRA.300.2 ...
30.0 40 4 PFRA.400  A  ...
30.0 40 4 PFRA.400.2 ...
30.0 40 5 PFRA.500  A  ...
30.0 40 6 PFRA.600 ...
30.0 40 7 PFRA.700 ...
30.0 40 8 PFRA.800  A  ...
30.0 40 9 PFRA.900 ...
16.0 100 11 PFRA.1100 ...

Most Popular.

Packaging Unit PFRA.xxxx  Bulk (500 pcs.)
PFRA.010.2 - PFRA.160.2  Taped 34 cm Reel (3000 pcs.)
PFRA.185.2 - PFRA.400.2  Taped 34 cm Reel (1500 pcs.)

010010270000000130
LOADING...
