Description
- 4.5 x 2.25 mm Side Actuated Tactile Switch
Unique Selling Proposition
- Microminiature size 4.5 x 2.25 x 2.6 mm
- Max. 1.0 mm height above the PCB (edge mount)
- Options of different actuation forces

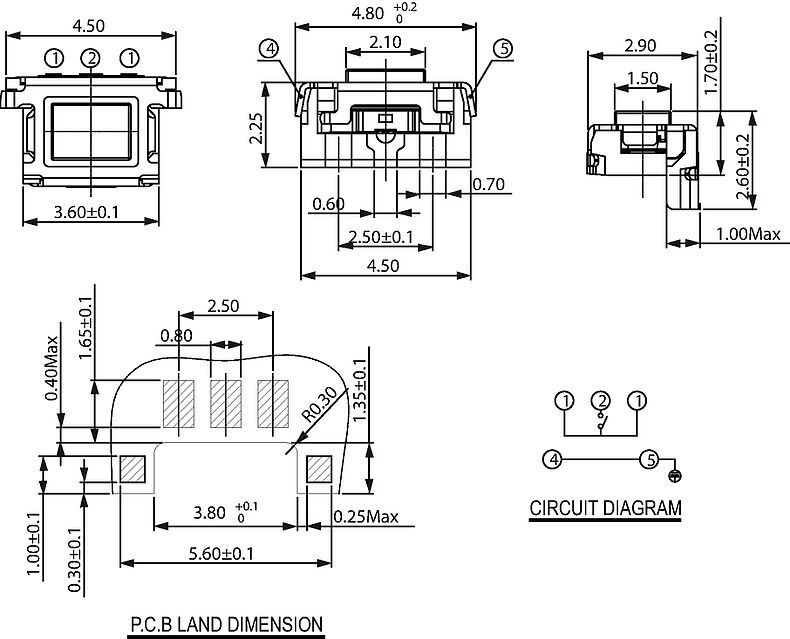

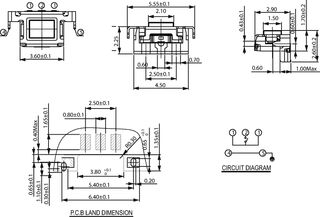

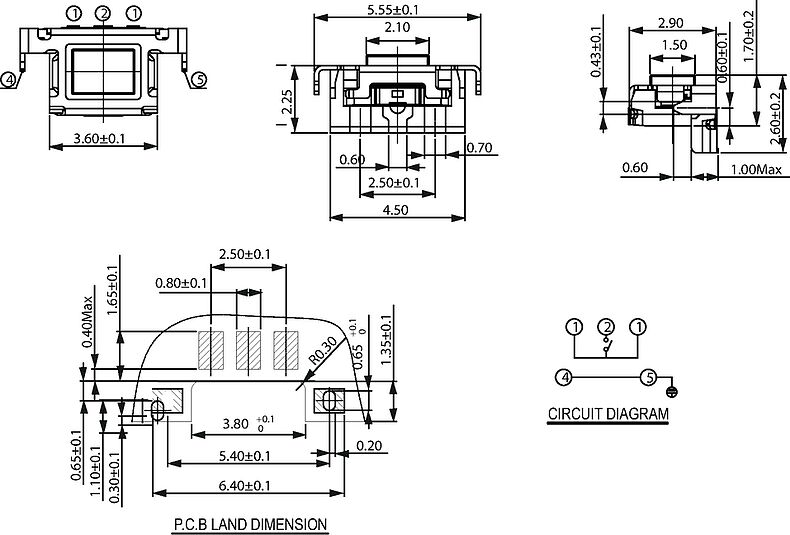

- SMT termination with or without L-shape shield
Applications
- Portable electronic equipment; e.g. Digital cameras, Audio players, Sports headset, Bluetooth accessory, Healts monitoring
Electrical Data
Switching Voltage
2 VDC - 12 VDC
Switching current
10 µA- 50 mA
Lifetime
200'000 actuations
Contact Resistance
max. 100 mΩ (initial)
max. 200 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Mechanical Data
Actuating Force
1.6 N, 3.2 N
Actuating Travel
0.15 ± 0.1 mm
Climatical Data
Operating Temperature
-40 °C - 85 °C
Storage Temperature
-40 °C - 85 °C
IP-Protection
IP40
Soldering Data
Soldering Methods
Reflow
Solderability
260 °C max. 5 sec
Material
Terminals
Ag-plated Phosphor Bronze
Contact
Ag-plated Stainless Steel
Cover
Ni/Sn-Plated Stainless Steel
Base
Thermoplastic (PA)
Actuator
Thermoplastic (PA)
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: TCSV4
| Approval Logo | Certificates | Certification Body | Description |
|---|
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |

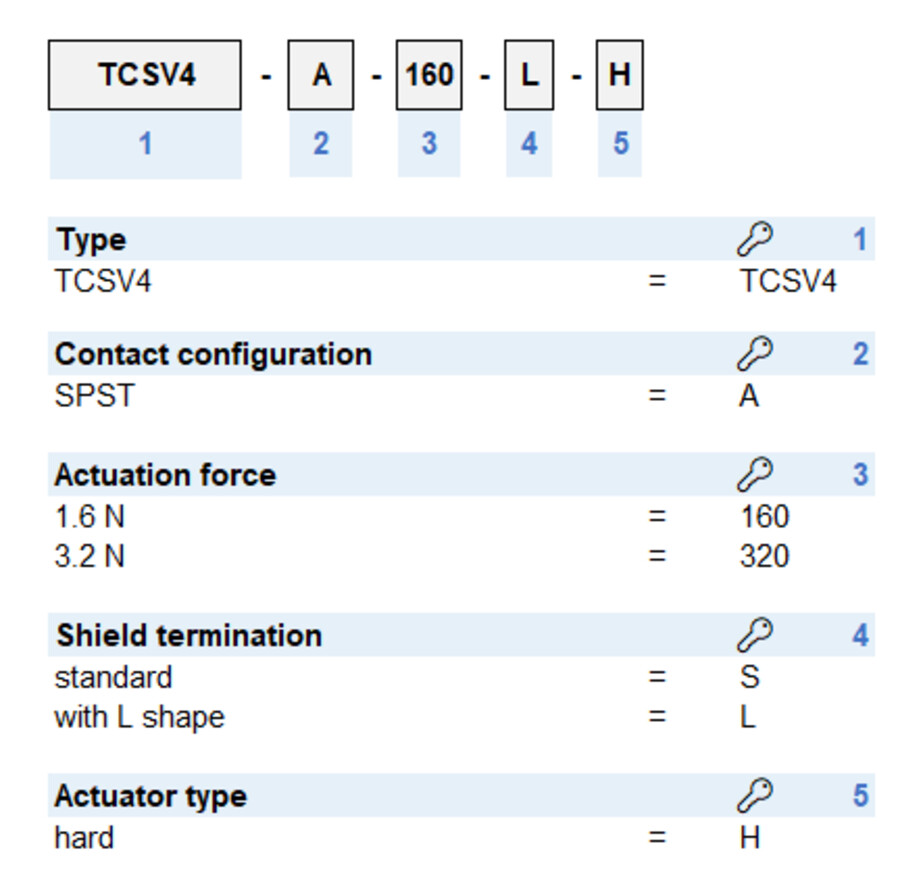

Short Table of Variants TCSV4 Open complete table TCSV4
| Type | Height above PCB | Terminal |
Order Number
|
Symbols, Footprints, 3D-Models | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|---|
| TCSV4 | max. 1.0 mm | standard | 3-162-923 |
|
- | ... | ||
| TCSV4 | max. 1.0 mm | standard | 3-162-924 |
|
- | ... | ||
| TCSV4 | max. 1.0 mm | with L shape | 3-162-925 |
|
- | ... | ||
| TCSV4 | max. 1.0 mm | with L shape | 3-162-926 |
|
- | ... |
| Packaging unit | 2500 pcs. (Tape & Reel) |
