DC11 IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole

Series: DC11

IEC Appliance Inlet C14 or C18 with Line Switch 1- or 2-pole

25 Variants

Connectors (Inlets/Outlets)

C14

70° C

C18

70° C

Approvals and Compliances

CAD

Description

Panel mount: Screw-on version from front or rear side, snap-in version front side
Appliance Inlet protection class I or II, Line Switch 1 or 2 pole
V-Lock notch standard
Quick connect terminals 4.8 x 0.8 mm

Unique Selling Proposition

Ultra compact design
Line switch for high inrush currents
Components internally wired
V-Lock cord retaining

Characteristics

All single elements are already wired
Unwired versions available on request
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 62368-1

Other versions on request

Unwired versions
Solder terminals
Line switch with other rocker marking

Detailed request for product

Details DC11

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

15 A / 250 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I or II acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminals 4.8 x 0.8 mm

Panel Thickness S

See details in drawing
Snapper

Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 / C18 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I or II

Line Switch

Also includes circuit breaker switch and switch for Bowden cables.

Details about the switches can also be found in the general product information.
Line Switch

Rocker switch 1-/2-pole, non-illuminated or illuminated, acc. to IEC 61058-1
Technical Details

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DC11

Certificates	Certification Body	Description
VDE Approvals	VDE	Certificate Number: 40007009
UL Approvals	UL	UR File Number: E96454
CCC Approvals	CCC	CCC Certificate Number: 2013010204594013

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 61058-1	Switches for appliances. Part 1. General requirements
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
	Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
	SCHURTER AG	V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

Dimensions [mm]

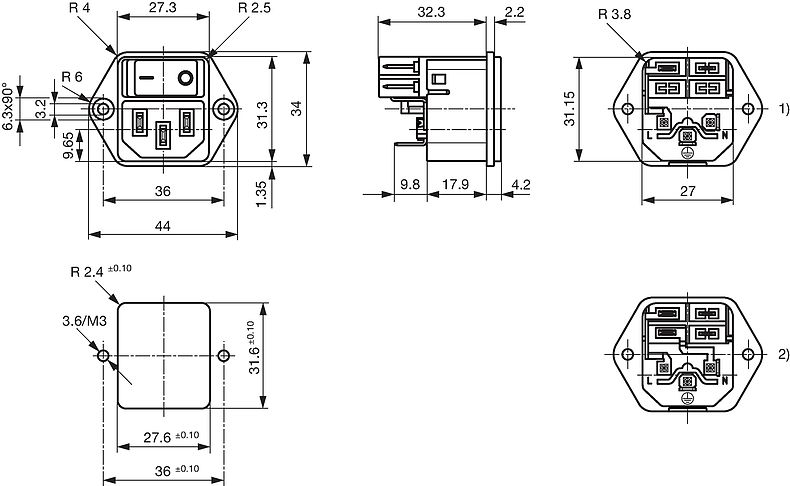

	Screw-on mounting

	1) 1-pol non-illuminated 2) 2-pol illuminated, 2-pol non-illuminated

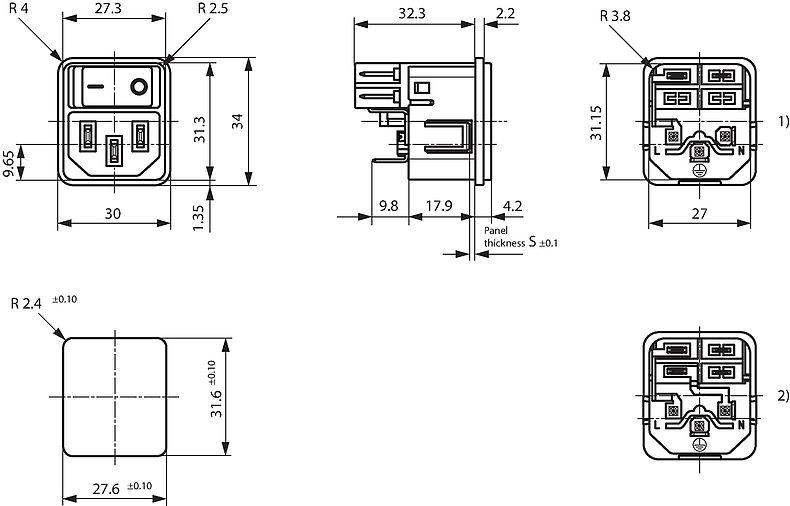

	Snap-in mounting

	1) 1-pol non-illuminated 2) 2-pol illuminated, 2-pol non-illuminated

Diagrams

	Line switch non-illuminated 2-pole

	1) Line 2) Load

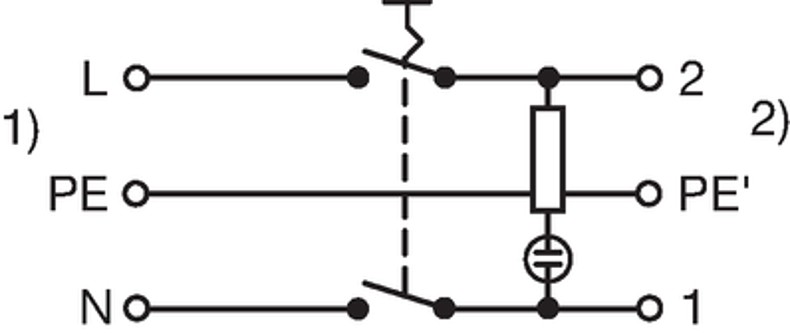

	Line switch illuminated 2-pole

	1) Line 2) Load

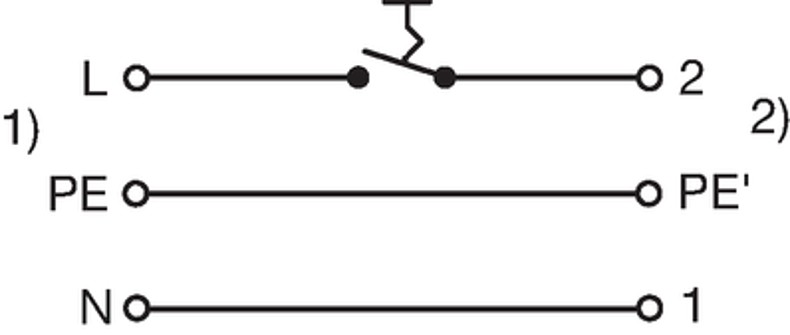

	Line switch non-illuminated 1-pole

	1) Line 2) Load

Short Table of Variants DC11 Open complete table DC11

Rated Current UL	Protection Class	Panel mounting	Order Number	...
[A]


15	I	Snap-in	DC11.0021.201	...
15	I	Snap-in	DC11.0021.206	...
15	I	Snap-in	DC11.0021.301	...
15	I	Snap-in	DC11.0021.401	...
15	I	Snap-in	DC11.0031.201	...
15	I	Snap-in	DC11.0031.301	...
15	I	Snap-in	DC11.0031.401	...
15	I	Snap-in	DC11.0001.203	...
15	I	Snap-in	DC11.0001.207	...
15	I	Snap-in	DC11.0001.303	...
15	I	Snap-in	DC11.0001.403	...
15	I	Snap-in	DC11.0001.201	...
15	I	Snap-in	DC11.0001.206	...
15	I	Snap-in	DC11.0001.301	...
15	II	Snap-in	DC11.0001.351	...
15	I	Snap-in	3-107-445	...
15	I	Snap-in	DC11.0001.401	...
15	I	Snap-in	DC11.0001.501	...
15	I	Screw	DC11.0021.001	...
15	I	Screw	DC11.0021.006	...
15	I	Screw	DC11.0031.001	...
15	I	Screw	DC11.0001.003	...
15	I	Screw	DC11.0001.007	...
15	I	Screw	DC11.0001.001	...
15	I	Screw	DC11.0001.006	...
With screw mounting on PCB, 2 screws are included All variants according VDE (ENEC 10) approved for 10 A

Packaging unit

50 Pcs

Table of Variants DC11

Rated Current UL	Protection Class	Panel mounting	Panel Thickness s	Line Switch	Illumination	Color	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form
[A]			[mm]


15	I	Snap-in	1.5	2-pole	•	red	DC11.0021.201	50
15	I	Snap-in	1.5	2-pole	•	red	DC11.0021.206	50
15	I	Snap-in	2	2-pole	•	red	DC11.0021.301	50
15	I	Snap-in	2.5	2-pole	•	red	DC11.0021.401	50
15	I	Snap-in	1.5	2-pole	•	green	DC11.0031.201	50
15	I	Snap-in	2	2-pole	•	green	DC11.0031.301	50
15	I	Snap-in	2.5	2-pole	•	green	DC11.0031.401	50
15	I	Snap-in	1.5	1-pole		-	DC11.0001.203	50
15	I	Snap-in	1.5	1-pole		-	DC11.0001.207	50
15	I	Snap-in	2	1-pole		-	DC11.0001.303	50
15	I	Snap-in	2.5	1-pole		-	DC11.0001.403	50
15	I	Snap-in	1.5	2-pole		-	DC11.0001.201	50
15	I	Snap-in	1.5	2-pole		-	DC11.0001.206	50
15	I	Snap-in	2	2-pole		-	DC11.0001.301	50
15	II	Snap-in	2	2-pole		-	DC11.0001.351	50
15	I	Snap-in	2.5	2-pole		-	3-107-445	50
15	I	Snap-in	2.5	2-pole		-	DC11.0001.401	50
15	I	Snap-in	3	2-pole		-	DC11.0001.501	50
15	I	Screw	-	2-pole	•	red	DC11.0021.001	50
15	I	Screw	-	2-pole	•	red	DC11.0021.006	50
15	I	Screw	-	2-pole	•	green	DC11.0031.001	50
15	I	Screw	-	1-pole		-	DC11.0001.003	50
15	I	Screw	-	1-pole		-	DC11.0001.007	50
15	I	Screw	-	2-pole		-	DC11.0001.001	50
15	I	Screw	-	2-pole		-	DC11.0001.006	50
With screw mounting on PCB, 2 screws are included All variants according VDE (ENEC 10) approved for 10 A

Packaging unit

50 Pcs

References / Document Downloads

References DC11

Alternative: version with line filter (1)

[Swipe to the left and right for more options]

DC12

Substitute for type (3)

[Swipe to the left and right for more options]

6010-K

KEB1

KEB2

Mating Components DC11

Mating Outlets/Connectors (9)

[Swipe to the left and right for more options]

4787

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

5091

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15

6004.0215

Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black

6003.0215

Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black

Mating Outlets/Connectors shuttered (3)

[Swipe to the left and right for more options]

4783

4783 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

VAC13KS

VAC13KS, Overview, V-Lock cord retaining, diverse Connector IEC C13, diverse, black

VAC17KS

VAC17KS, V-Lock cord retaining, diverse m, Connector IEC C17, diverse, black / grey / white

Accessories DC11

Accessories (3)

[Swipe to the left and right for more options]

Wire Harness

Wire harness for SCHURTER products

RC320

Rear Cover for Power Entry Module

Cord retaining kits
