Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
E.g. DG12 with rear cover
E.g. DG11 with rear cover
Description
- The new RC320 Rear Covers protect against unintentional contact with live terminals.
- Rear covers from SCHURTER are a welcome addition for professional internal device designs.
Unique Selling Proposition
- Silicone rubber for a better fit.
- With high flame protection class UL94 V-0.
- Temperature resistant up to 150°C.
- Halogen free and RoHS, China RoH as well as REACH compliant.
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | SCHURTER strives to offer our customers halogen free products. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...

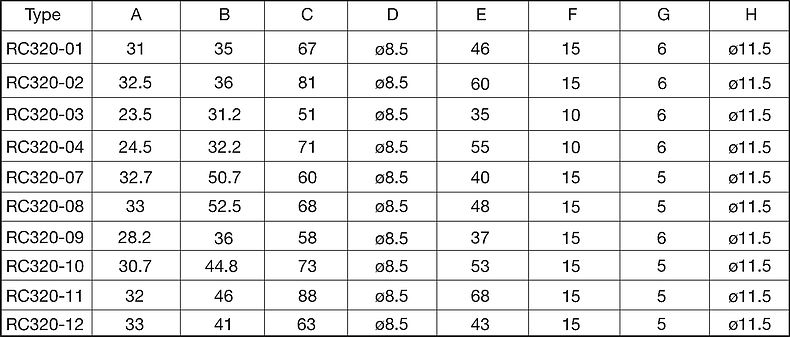

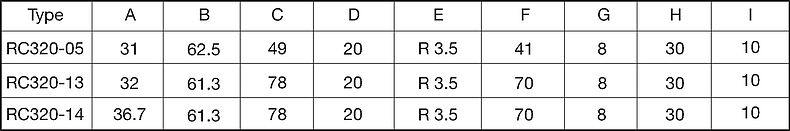

Short Table of Variants RC320 Open complete table RC320
| Type name | Suitable for | Remarks |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... |
|---|---|---|---|---|---|---|
| RC320-01 Rear Cover | 1062, 1064, 4707, 6200, 6202, 6205, 6220, DC11, KEA, KEB1 | - | 3-125-661 | ... | ||
| RC320-02 Rear Cover | 5130, 5200, 5220, 5707, C20F, C22F, DC12, KFA, KFB1 | - | 3-125-662 | ... | ||
| RC320-03 Rear Cover | 0711, 1061, 2565, 6010, 6015, 6061, 6080, 6100-3, 6100-4, 6102-3, 6102-5, 6110-3, 6110-4, 6120-3 | - | 3-125-663 | ... | ||
| RC320-04 Rear Cover | 5003, 5110, 5120, 5121, 5123, 5124, KFS | - | 3-125-664 | ... | ||
| RC320-05 Rear Cover | 6762, 6765 | - | 3-125-665 | ... | ||
| RC320-06 Rear Cover | CD, KD | - | 3-125-666 | ... | ||
| RC320-07 Rear Cover | DD11, EC11, KM, KMF | - | 3-125-667 | ... | ||
| RC320-08 Rear Cover | DD12, DD14 | - | 3-125-668 | ... | ||
| RC320-09 Rear Cover | 1621, 1624, 4721, 4723, 4793, 4798, 5098, 6600-3, 6600-4 | - | 3-125-669 | ... | ||
| RC320-10 Rear Cover | KEB2, KEC | - | 3-125-670 | ... | ||
| RC320-11 Rear Cover | KFB2, KFC | - | 3-125-671 | ... | ||
| RC320-12 Rear Cover | 4797, 5213, 5216 | - | 3-125-672 | ... | ||
| RC320-13 Rear Cover | DG11, DG12 | IP40 version | 3-125-673 | ... | ||
| RC320-14 Rear Cover | DG11, DG12 | IP67 version | 3-125-674 | ... |
Substitute for type (1)
