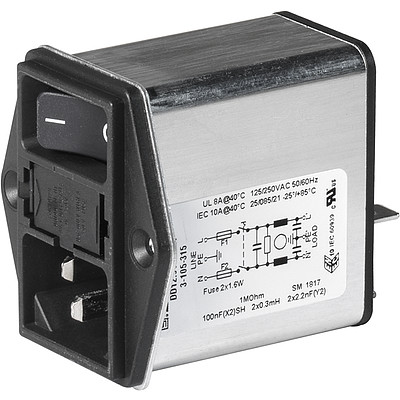

Screw-on mounting horizontal (version B)

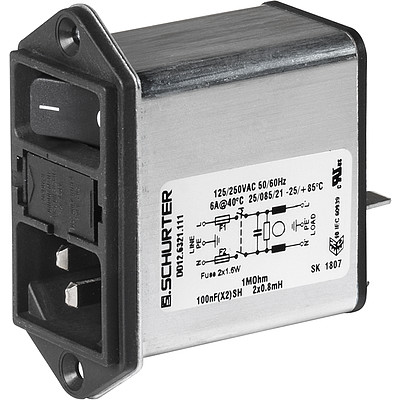

Screw-on mounting vertical (version A)

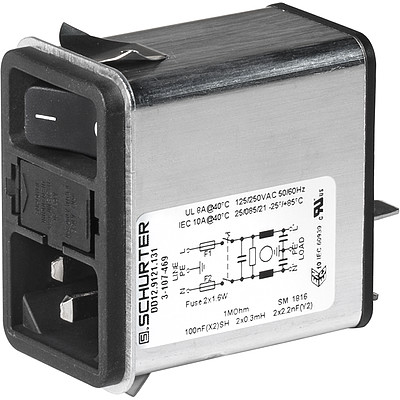

Snap-in mounting

Series: DD12

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, Line Switch 2-pole

52 Variants

Connectors (Inlets/Outlets)

C14

70° C

Approvals and Compliances

CAD

Description

Panel mount: Screw-on from front side
4 Functions: Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole, Line filter in standard and medical version
V-Lock notch standard
Quick connect terminals 6.3 x 0.8 mm

Unique Selling Proposition

Various mounting options
Attractive flat design
Switch for highest inrush current
V-Lock cord retaining

Characteristics

Ultra-compact design. Ideal for low profile designs
Aluminum case provides good shielding
All single elements are already wired
Ideal for application with high transient loads
For applications according IEC/UL 62368-1 we recommend variants with bleed resistor
Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Other versions on request

Solder terminals
Other rocker marking
Line switch, illuminated
Line switch 1-pole
Medical Version (M80)
Class X1- and Y1-capacitors for enhanced withstand voltage

Detailed request for product

Details DD12

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Ratings IEC

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

1 - 10 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Quick connect terminals 6.3 x 0.8 mm

Panel Thickness S

Screw-on mounting: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1 mm to 3 mm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

C14 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Fuseholder

1-/2-pole, Shocksafe category PC2 acc. to IEC 60127-6,
for fuse-links 5 x 20 mm

Rated Power Acceptance @ Ta 23 °C

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per pole

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Line Switch

Rocker switch 2-pole, non-illuminated, acc. to IEC 61058-1
Technical Details

Line Filter

Standard and Medical Version, IEC 60939, UL 60939-3, CSA C22.2 no. 8
Technical Details

MTBF

> 2'000'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DD12

Certificates	Certification Body	Description
VDE Approvals	VDE	Certificate Number: 40001522
UL Approvals	UL	UR File Number: E495089
CQC Approvals	CQC	CQC Certificate Number: 20001257136, 22001363465

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60939	Passive filters for suppressing electromagnetic interference
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	IEC 61058-1	Switches for appliances. Part 1. General requirements
Designed according to	UL 498	Standard for Attachment Plugs and Receptacles
Designed according to	UL 60939-3	Passive filters for suppressing electromagnetic interference
Designed according to	CSA C22.2 no. 42	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Designed according to	CSA C22.2 no. 8	Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Design	Standard	Description
Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
Suitable for applications acc.	IEC 60601-1	Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
	SCHURTER AG	V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Medical Equipment	SCHURTER AG	Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Dimension [mm]

	Screw version A

	Screw version B

	Snap-in mounting from front side

Diagrams

	Standard Version, medical Version M80 Non-illuminated

	1) Line 2) Load

	Medical Version (M5) Non-illuminated

	1) Line 2) Load

	Standard Version, medical Version M80 with PE-choke

	1) Line 2) Load

	Medical Version (M5) with PE-choke

	1) Line 2) Load

Derating Curves

	1-pole
Admissible power acceptance in Watt
	Ambient air temperature Ta °C

	2-pole
Admissible power acceptance in Watt per pole
	Ambient air temperature Ta °C

Technical Data of Filter-Components

Rated Current [A]	Filter-Type	Inductance L1/L2 [mH]	Inductance L3 [mH]	Capacitance CX [nF]	Capacitance CY [nF]	R [MΩ]
1	Standard version	2 x 10	-	100	2.2	1
2	Standard version	2 x 4	-	100	2.2	1
4	Standard version	2 x 1.5	-	100	2.2	1
6	Standard version	2 x 0.8	-	100	2.2	1
8	Standard version	2 x 0.6	-	100	2.2	1
10	Standard version	2 x 0.3	-	100	2.2	1
6	Standard Version with Ground Line Choke	2 x 0.8	0.6	100	2.2	1
10	Standard Version with Ground Line Choke	2 x 0.3	0.15	100	2.2	1
1	Medical Version (M5)	2 x 10	-	100	-	1
2	Medical Version (M5)	2 x 4	-	100	-	1
4	Medical Version (M5)	2 x 1.5	-	100	-	1
6	Medical Version (M5)	2 x 0.8	-	100	-	1
8	Medical Version (M5)	2 x 0.6	-	100	-	1
10	Medical Version (M5)	2 x 0.3	-	100	-	1
1	Medical Version (M80)	2 x 10	-	100	0.47	1

Attenuation Loss

Standard version

	1 A

	2 A

	4 A

	6 A

	8 A

	10 A

Medical version (M5)

	1 A

	2 A

	4 A

	6 A

	8 A

	10 A

Short Table of Variants DD12 Open complete table DD12

Rated Current [A]	Filter-Type	Mounting	Order Number	...

1	Standard version	Screw-on A	DD12.1111.111	...
1	Standard version	Snap-in	3-107-465	...
1	Standard version	Screw-on B	3-109-955	...
1	Standard version	Screw-on A	DD12.1121.111	...
2	Standard version	Screw-on A	DD12.2111.111	...
2	Standard version	Snap-in	3-107-466	...
2	Standard version	Screw-on B	3-109-956	...
2	Standard version	Screw-on A	DD12.2121.111	...
2	Standard version	Screw-on A	DD12.2123.111	...
2	Standard version	Screw-on A	DD12.2124.111	...
4	Standard version	Screw-on B	3-110-001	...
4	Standard version	Snap-in	3-110-032	...
4	Standard version	Screw-on A	DD12.4111.111	...
4	Standard version	Snap-in	3-107-467	...
4	Standard version	Screw-on B	3-109-957	...
4	Standard version	Screw-on A	DD12.4121.111	...
6	Standard version	Snap-in	3-110-010	...
6	Standard version	Screw-on B	3-110-031	...
6	Standard version	Screw-on A	DD12.6111.111	...
6	Standard version	Screw-on B	3-102-857	...
6	Standard version	Snap-in	3-102-861	...
6	Standard version	Screw-on A	DD12.6121.111	...
6	Standard version	Screw-on A	DD12.6123.111	...
8	Standard version	Screw-on A	DD12.8111.111	...
8	Standard version	Snap-in	3-107-468	...
8	Standard version	Screw-on B	3-109-958	...
8	Standard version	Screw-on A	DD12.8121.111	...
10	Standard version	Screw-on A	DD12.9111.111	...
10	Standard version	Screw-on B	3-105-315	...
10	Standard version	Snap-in	3-107-469	...
10	Standard version	Screw-on A	DD12.9121.111	...
6	Standard Version with Ground Line Choke	Screw-on B	3-109-943	...
10	Standard Version with Ground Line Choke	Screw-on A	3-102-855	...
1	Medical Version (M5)	Snap-in	3-107-472	...
1	Medical Version (M5)	Screw-on B	3-109-994	...
1	Medical Version (M5)	Screw-on A	DD12.1321.111	...
2	Medical Version (M5)	Snap-in	3-107-473	...
2	Medical Version (M5)	Screw-on B	3-109-995	...
2	Medical Version (M5)	Screw-on A	DD12.2321.111	...
4	Medical Version (M5)	Snap-in	3-107-474	...
4	Medical Version (M5)	Screw-on B	3-109-997	...
4	Medical Version (M5)	Screw-on A	DD12.4321.111	...
6	Medical Version (M5)	Snap-in	3-107-475	...
6	Medical Version (M5)	Screw-on B	3-109-998	...
6	Medical Version (M5)	Screw-on A	DD12.6321.111	...
8	Medical Version (M5)	Snap-in	3-107-476	...
8	Medical Version (M5)	Screw-on B	3-109-999	...
8	Medical Version (M5)	Screw-on A	DD12.8321.111	...
10	Medical Version (M5)	Snap-in	3-107-477	...
10	Medical Version (M5)	Screw-on B	3-110-000	...
10	Medical Version (M5)	Screw-on A	DD12.9321.111	...
1	Medical Version (M80)	Screw-on A	DD12.1621.111	...
The fuse drawer is not included and must be ordered separately (see required accessory).

Packaging unit

10 Pcs

Table of Variants DD12

Rated Current [A]	Filter-Type	Mounting	Fuseholder	Line Switch	Illumination	Color	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

1	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.1111.111	10
1	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-465	10
1	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-955	10
1	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.1121.111	10
2	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.2111.111	10
2	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-466	10
2	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-956	10
2	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.2121.111	10
2	Standard version	Screw-on A	2-pole	2-pole	illuminated, red	black	DD12.2123.111	10
2	Standard version	Screw-on A	2-pole	2-pole	illuminated, green	black	DD12.2124.111	10
4	Standard version	Screw-on B	1-pole	2-pole	non-illuminated	black	3-110-001	10
4	Standard version	Snap-in	1-pole	2-pole	non-illuminated	black	3-110-032	10
4	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.4111.111	10
4	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-467	10
4	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-957	10
4	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.4121.111	10
6	Standard version	Snap-in	1-pole	2-pole	non-illuminated	black	3-110-010	10
6	Standard version	Screw-on B	1-pole	2-pole	non-illuminated	black	3-110-031	10
6	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.6111.111	10
6	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-102-857	10
6	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-102-861	10
6	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.6121.111	10
6	Standard version	Screw-on A	2-pole	2-pole	illuminated red	black	DD12.6123.111	10
8	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.8111.111	10
8	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-468	10
8	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-958	10
8	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.8121.111	10
10	Standard version	Screw-on A	1-pole	2-pole	non-illuminated	black	DD12.9111.111	10
10	Standard version	Screw-on B	2-pole	2-pole	non-illuminated	black	3-105-315	10
10	Standard version	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-469	10
10	Standard version	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.9121.111	10
6	Standard Version with Ground Line Choke	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-943	10
10	Standard Version with Ground Line Choke	Screw-on A	2-pole	2-pole	non-illuminated	black	3-102-855	10
1	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-472	10
1	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-994	10
1	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.1321.111	10
2	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-473	10
2	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-995	10
2	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.2321.111	10
4	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-474	10
4	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-997	10
4	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.4321.111	10
6	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-475	10
6	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-998	10
6	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.6321.111	10
8	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-476	10
8	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-109-999	10
8	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.8321.111	10
10	Medical Version (M5)	Snap-in	2-pole	2-pole	non-illuminated	black	3-107-477	10
10	Medical Version (M5)	Screw-on B	2-pole	2-pole	non-illuminated	black	3-110-000	10
10	Medical Version (M5)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.9321.111	10
1	Medical Version (M80)	Screw-on A	2-pole	2-pole	non-illuminated	black	DD12.1621.111	10
The fuse drawer is not included and must be ordered separately (see required accessory).

Packaging unit

10 Pcs

References / Document Downloads

References DD12

Alternative: version without line filter (1)

[Swipe to the left and right for more options]

DD11

Alternative: version for snap-in mounting (1)

[Swipe to the left and right for more options]

KMF

Alternative: version with 2-stage filter (1)

[Swipe to the left and right for more options]

DD14

Mating Components DD12

Mating Outlets/Connectors (7)

[Swipe to the left and right for more options]

4787

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

5091

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15

Mating Outlets/Connectors shuttered (2)

[Swipe to the left and right for more options]

4783

4783 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

VAC13KS

VAC13KS, Overview, V-Lock cord retaining, diverse Connector IEC C13, diverse, black

Accessories DD12

Required Accessory (1)

[Swipe to the left and right for more options]

Fusedrawer 2

Fusedrawer for Fuse Links 5x20 mm, with or without Voltage Selector Insert

Accessories (3)

[Swipe to the left and right for more options]

Wire Harness

Wire harness for SCHURTER products

RC320

Rear Cover for Power Entry Module

Cord retaining kits

Cord retaining strain relief

26.09.2024

Transformation_Date:	2024-09-26 19:48:40
Export_Path:	/Datasheets_PrGrp_Workflow/DS_PrGrp_WF_EMV/DS_PrGrp_WF_EMV_PG06_Export/2024_09_26/09_48_12_301_552422/PGRSplits/
Export_Lang:	en
SGE_Name:	EMC Products
PG_Name:	Power Entry Modules with Line Filter
Typ_Name:	DD12
Typ_AliasNames:	:dd12:
Typ_ID:	37306
Typ_Hierarchie:	020060160000001545
Typ_EPIM_Order:	30
Typ_Titel:	IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, Line Switch 2-pole
PublPrgr_Name:	Power Entry Modules with Filter
PublPrgr_Shortcut:	PG06
Variant table:	Variantentabelle V137 (222131)

Series: DD12

Description DD12

Description

Unique Selling Proposition

Characteristics

Other versions on request

Details DD12

Approvals

Product standards

Application standards

Compliances

Dimension [mm]

Diagrams

Derating Curves

Technical Data of Filter-Components

Attenuation Loss

Standard version

Medical version (M5)

Short Table of Variants DD12 Open complete table DD12

References / Document Downloads

References DD12

Alternative: version without line filter (1)

Alternative: version for snap-in mounting (1)

Alternative: version with 2-stage filter (1)

Mating Components DD12

Mating Outlets/Connectors (7)

Mating Outlets/Connectors shuttered (2)

Accessories DD12

Required Accessory (1)

Accessories (3)
