Fuse drawer and voltage selector insert must be ordered separately.

Series

CE

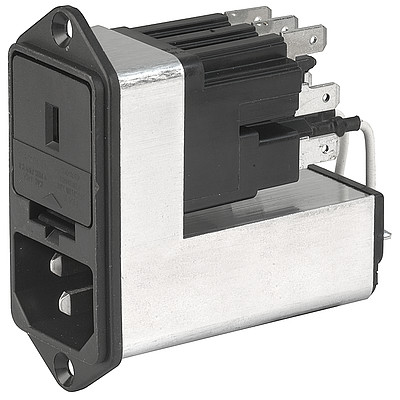

IEC Appliance Inlet C14 with Filter, Fuseholder 1-or 2-pole (5 x 20 mm or 6.3x32 mm, with or without voltage selector (series-parallel)

16 Variants

Connectors (Inlets/Outlets)

C14

70° C

Approvals and Compliances

CAD

Description CE

Description

Panel mount: Screw-on mounting front side
4 Functions: Appliance Inlet, Fuseholder with interchangeable fuse drawer for Fuse-links 5x20 mm or 6.3x32 mm 1 or 2 pole, Voltage Selector (series-parallel), Line filter in standard and medical version
Quick connect terminals 4.8 x 0.8 mm

Characteristics

All single elements are already partially wired
For added safety "Extra-Safe" fuse drawers are available
For applications according IEC/UL 62368-1 we recommend variants with bleed resistor
Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Detailed request for product

Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.

Details CE

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

1 - 10 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

The leakage current is an electric current flowing in an undesirable current path.
In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminals 4.8 x 0.8 mm

Panel Thickness S

See details in drawing
Snapper

Screw: max 8 mm
Mounting screw torque max 0.5 Nm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Fuseholder

1.) fuse holder does not include circuit breakers
2.) Details about fuse-links can be found in the catalog under
FusesDetailed information on the fuse holder and fuse drawers can be found in the general product information.
Fuse drawer

1-/2-pole, Shocksafe category PC2 acc. to IEC 60127-6,
for fuse-links 5 x 20 / 6.3 x 32 mm

Rated Power Acceptance @ Ta 23 °C

5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per pole
6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole) per pole

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Voltage Selector

You can refer to different input voltages
Details about the voltage selector can also be found in the general product information
Voltage Selector

series-parallel, 4, 3 or 2 switch positions or usable as 2-pole change-over switch

Line Filter

Filter Type

Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medizinal: < 0.1 mA
Leakage Current

Standard and Medical Version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details

MTBF

The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 1'400'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: CE

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	Certificate Number: 40004665 (FKA, FKB)
	UL Approvals	UL	UR File Number: E72928 (FKA, FKB)

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60939	Passive filters for suppressing electromagnetic interference
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	IEC 61058-1	Switches for appliances. Part 1. General requirements
Designed according to	UL 498	Standard for Attachment Plugs and Receptacles
Designed according to	UL 1283	Passive filters for suppressing electromagnetic interference
Designed according to	CSA C22.2 no. 42	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Designed according to	CSA C22.2 no. 8	Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Design	Standard	Description
Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
Suitable for applications acc.	IEC 60601-1	Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
	SCHURTER AG	V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Medical Equipment	SCHURTER AG	Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

Dimension [mm]

	CE

Diagrams

	Standard version

	1) Line 2) Load x) External connection to be made by the customer

	Medical Version (M5)

	1) Line 2) Load x) External connection to be made by the customer

Derating Curves

	Fuses 5 x 20 mm (1-pole)
Admissible power acceptance in Watt
	Ambient air temperature Ta °C

	Fuses 5 x 20 mm (2-pole, per pole)
Admissible power acceptance in Watt per pole
	Ambient air temperature Ta °C

	Fuses 6.3 x 32 mm (1-pole)
Admissible power acceptance in Watt
	Ambient air temperature Ta °C

	Fuses 6.3 x 32 mm (2-pole, per pole)
Admissible power acceptance in Watt per pole
	Ambient air temperature Ta °C

Technical Data of Filter-Components

Rated Current [A]	Filter-Type	Inductances L [mH]	Capacitance CX [nF]	Capacitance CY [nF]	R [MΩ]
1	Standard version	2 x 10	68	2.2	-
2	Standard version	2 x 4	68	2.2	-
4	Standard version	2 x 1.5	68	2.2	-
6	Standard version	2 x 0.8	68	2.2	-
10	Standard version	2 x 0.3	68	2.2	-
1	Medical Version (M5)	2 x 10	68	-	1
2	Medical Version (M5)	2 x 4	68	-	1
4	Medical Version (M5)	2 x 1.5	68	-	1
6	Medical Version (M5)	2 x 0.8	68	-	1
10	Medical Version (M5)	2 x 0.3	68	-	1
2	Medical Version (M80)	2 x 4	68	0.47	1

Attenuation Loss

Standard version

	1 A

	2 A

	4 A

	6 A

	10 A

Medical version (M5)

	1 A

	2 A

	4 A

	6 A

	10 A

Short Table of Variants CE Open complete table CE

Rated Current [A]	Filter-Type	Fuseholder	Order Number	...
[A]


1	Standard version	1-pole	CE16.5100.151	...
2	Standard version	1-pole	CE26.5100.151	...
4	Standard version	1-pole	CE36.5100.151	...
6	Standard version	1-pole	CE46.5100.151	...
10	Standard version	1-pole	CE66.5100.151	...
1	Standard version	2-pole	CE10.6100.151	...
2	Standard version	2-pole	CE20.6100.151	...
4	Standard version	2-pole	CE30.6100.151	...
6	Standard version	2-pole	CE40.6100.151	...
10	Standard version	2-pole	CE60.6100.151	...
10	Medical Version (M5)	2-pole	3-119-351	...
2	Medical Version (M5)	2-pole	CEA0.6100.151	...
4	Medical Version (M5)	2-pole	CEC0.6100.151	...
6	Medical Version (M5)	2-pole	CEE0.6100.151	...
1	Medical Version (M5)	2-pole	CEG0.6100.151	...
10	Medical Version (M5)	2-pole	CEL0.6100.151	...
The fuse drawer is not included and must be ordered separately (see required accessory).

Packaging unit

10 Pcs

Table of Variants CE

Rated Current [A]	Filter-Type	Fuseholder	V-Lock	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form
[A]


1	Standard version	1-pole		CE16.5100.151	10
2	Standard version	1-pole		CE26.5100.151	10
4	Standard version	1-pole		CE36.5100.151	10
6	Standard version	1-pole		CE46.5100.151	10
10	Standard version	1-pole		CE66.5100.151	10
1	Standard version	2-pole		CE10.6100.151	10
2	Standard version	2-pole		CE20.6100.151	10
4	Standard version	2-pole		CE30.6100.151	10
6	Standard version	2-pole		CE40.6100.151	10
10	Standard version	2-pole		CE60.6100.151	10
10	Medical Version (M5)	2-pole	•	3-119-351	10
2	Medical Version (M5)	2-pole		CEA0.6100.151	10
4	Medical Version (M5)	2-pole		CEC0.6100.151	10
6	Medical Version (M5)	2-pole		CEE0.6100.151	10
1	Medical Version (M5)	2-pole		CEG0.6100.151	10
10	Medical Version (M5)	2-pole		CEL0.6100.151	10
The fuse drawer is not included and must be ordered separately (see required accessory).

Packaging unit

10 Pcs

References / Document Downloads

References CE

Alternative: version without line filter (1)

[Swipe to the left and right for more options]

Mating Components CE

Mating Outlets/Connectors (7)

[Swipe to the left and right for more options]

4787

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

5091

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15

Mating Outlets/Connectors shuttered (2)

[Swipe to the left and right for more options]

4783

4783 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

VAC13KS

VAC13KS, Overview, V-Lock cord retaining, diverse Connector IEC C13, diverse, black

Accessories CE

Required Accessory (3)

[Swipe to the left and right for more options]

Fusedrawer 1

Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm

Jumper Wire 1

Connection with Stranded Cable

Voltage Selectors Insert 1

Voltage Selector Insert to KE, CE, KG, CG

Accessories (2)

[Swipe to the left and right for more options]

RC320

Rear Cover for Power Entry Module

Cord retaining kits

Cord retaining strain relief

27.02.2025

Transformation_Date:	2025-03-12 14:20:06
Export_Path:	/Datasheets_PrGrp_Workflow/DS_PrGrp_WF_EMV/DS_PrGrp_WF_EMV_PG06_Export/2025_02_27/07_14_07_817_553360/
Export_Lang:	en
SGE_Name:
PG_Name:
Typ_Name:	CE
Typ_AliasNames:	:ce:
Typ_ID:	346
Typ_Hierarchie:	020060160000001511
Typ_EPIM_Order:	2010
Typ_Titel:	IEC Appliance Inlet C14 with Filter, Fuseholder 1-or 2-pole (5 x 20 mm or 6.3x32 mm, with or without voltage selector (series-parallel)
PublPrgr_Name:	Power Entry Modules with Filter
PublPrgr_Shortcut:	PG06
Variant table:	Variantentabelle V40 (22100)
